How to set up automatic log sending in the event of a comparison error

Last modified: July 4, 2024

Automatic log sending in case of a database comparison error ensures prompt notification, efficient troubleshooting, proactive issue resolution, and the availability of historical documentation, all of which contribute to maintaining a reliable and robust comparison process.

The functionality of dbForge Schema Compare for SQL Server allows the user to configure the automatic sending of the schema comparison log file in case of comparison failure. More than that, the user can explicitly specify in the BAT file the exit codes to trigger email sending. In this article, we will provide a step-by-step walkthrough of how to achieve that.

Prerequisites

Installed and configured SMTP server

Workflow

• Create a PowerShell script file to email a log file
• Create a .bat file to initiate schema comparison
• Launch the .bat file

Create a PowerShell script file to email a log file

To begin with, you need to create a file with the PowerShell script to send a log file from a specified location on your PC to a desired email address using an SMTP server.

To create a PowerShell script file:

1. In a thrid-party text editor, such as Notepad, Notepad++, or Visual Studio Code, open a new blank document.

2. Enter the following script:

#Input data:
$From = "sender@email.com"
$To = "recipient@email.com"
$SMTPServer = "smtp.gmail.com"
$SMTPPort = "587"
$Username = "jordansanders"
$Password = "useveiiwtflclxrw"
$subject = "Synchronization log"
$body = "Database synchronization failed"
$file = "D:\logs\CompareResult.log"

#Message in the HTML format:
$message = New-Object System.Net.Mail.MailMessage $From, $To
$message.Subject = $subject
$message.IsBodyHTML = $true
$message.Body = $body
$att = new-object Net.Mail.Attachment($file)
$message.Attachments.Add($att)

#Recipient info:
$smtp = New-Object System.Net.Mail.SmtpClient($SMTPServer, $SMTPPort)
$smtp.EnableSSL = $true
$smtp.Credentials = New-Object System.Net.NetworkCredential($Username, $Password)
$smtp.Send($message)
$att.Dispose()

Where:

$From is the sender’s email address

$To is the recipient’s email address

$SMTPServer is the mail server address that forwards emails from a sender to a recipient

$SMTPPort is the port for encrypted email transmissions using SMTP Secure (SMTPS)

$Username is the username for SMTP Gmail

$Password is the SMTP app password

$subject is the email subject

$body is the email body

$file is the path to a log file to be sent

Note

You need to modify the variables in the script to align with your specific working context.

3. Save the file with a .ps1 extension.

Create a .bat file to initiate schema comparison

The next step is to create a .bat file that will initiate schema comparison, generate a log file, and in the event of an exit code 40 or 100, sends a log file to a specified email address.

To create a .bat file:

1. In a thrid-party text editor, such as Notepad, Notepad++, or Visual Studio Code, open a new blank document.

2. Enter the following script:

Set Compare="C:\Program Files\Devart\Compare Bundle for SQL Server\dbForge Schema Compare for SQL Server\schemacompare.com"
Set Sender= powershell.exe
Set ConnectionS= JordanS\SQL2022
Set ConnectionT= JordanSNew\SQL2022
Set DB1= SakilaDev
Set DB2= SakilaTest

%compare% /schemacompare /source connection:"Data Source=%ConnectionS%;Initial Catalog=%DB1%;Integrated Security=False;User ID=yourusername; Password=yourpassword;" /target connection:"Data Source=%ConnectionT%;Initial Catalog=%DB2%;Integrated Security=False;User ID=yourusername; Password=yourpassword;" /log:"D:\logs\LogFile.log"

echo exitcode: %ERRORLEVEL%

set Send=F
if %ERRORLEVEL% EQU 40 set Send=T
if %ERRORLEVEL% EQU 100 set Send=T
if %Send%==T (%Sender% -File D:\logs\SendLog\sendlog.ps1)

Where:

Set Compare is a path to dbForge Schema Compare for SQL Server

Set Sender is a tool that will execute a Powershell script

Set ConnectionS is the source database connection

Set ConnectionT is the target database connection

Set DB1 is the name of the source database

Set DB2 is the name of the target database

User ID is a user name to connect to a database

Password is a password to connect to a database

Note

You need to modify the variables in the script to align with your specific working context.

Note

You can modify the script to send a log file in the event of another exit code. Refer to the Exit codes used in the command line documentation topic to see the list of all Schema Compare’s exit codes.

3. Save the file with the .bat extension.

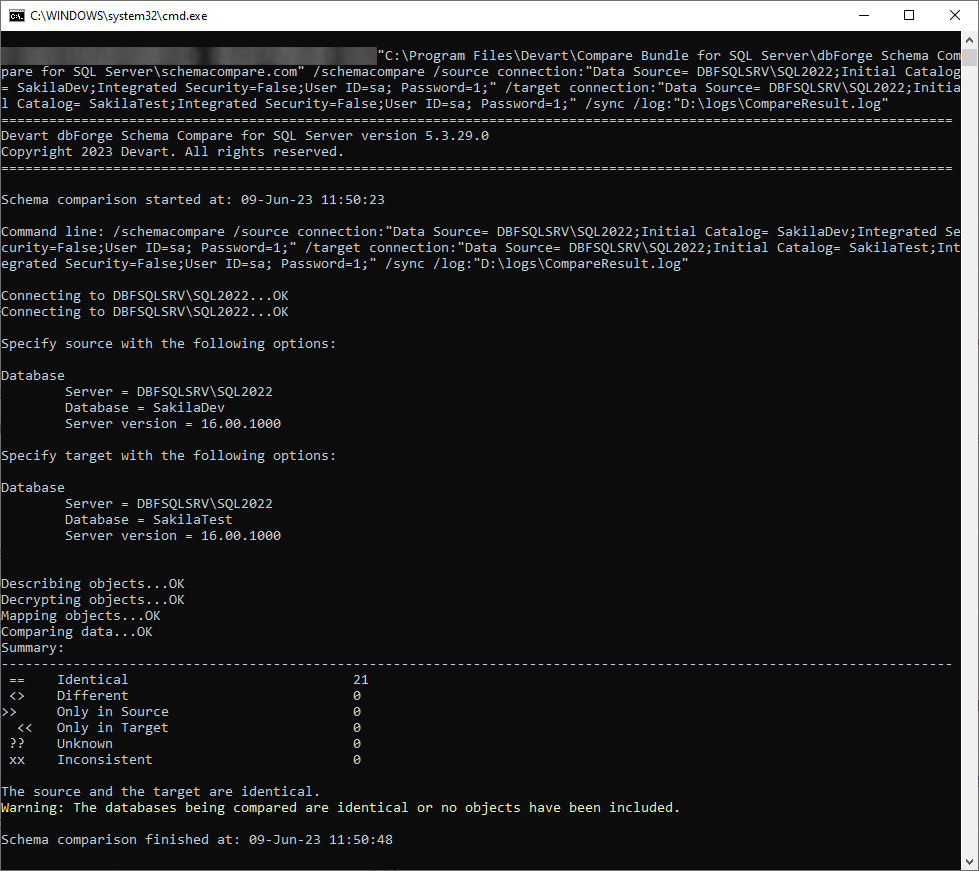

Launch the .bat file

Now, launch the .bat file.

In our example, the databases are identical. When the exit code 100 is encountered, the log file is sent to the email address specified in the script.

Note

You can schedule the .bat file execution using the Windows Task Scheduler so the computer can carry out the task automatically.

Additionally, watch this video to address possible questions about automatically sending schema comparison logs with dbForge Schema Compare.
