Procedure Editor

Procedure Editor in dbForge Studio for PostgreSQL provides a visual interface for creating and configuring stored procedures, allowing you to set procedure properties without manually specifying them in SQL code. The editor generates valid CREATE PROCEDURE and ALTER PROCEDURE DDL statements based on the data you specify. You can review this script before you apply the changes.

Use Procedure Editor to:

• Create a new procedure in the selected schema and with a specified owner.

• Edit an existing procedure’s body and properties.

• Generate a DDL script to create or modify a procedure.

Open Procedure Editor

You can open Procedure Editor in one of these ways:

• In Database Explorer:

  • Right-click a database and select New Object > Procedure.
  • Expand a database, right-click the Procedures node, then select New Procedure.
  • Right-click an existing procedure and select New Procedure.

• On the Standard toolbar, click the arrow next to , then select Procedure.

• On the menu bar, select Database > New Database Object. In the dialog, select the database > Procedure, specify the procedure name, then click Create.

• On the Start Page, select Database Design > New Database Object. In the dialog, select the database > Procedure, specify the procedure name, then click Create.

To open Procedure Editor for an existing procedure, use one of these ways:

• In Database Explorer:

  • Right-click the procedure and select Open Editor.
  • Double-click the procedure.

Note

You can configure the default action that occurs when you double-click a procedure in Database Explorer. Choose whether to open the procedure in the editor or execute it.

To configure the default action:

1. On the menu bar, select Tools > Options.

2. In the Options dialog, navigate to Database Explorer > General.

3. Under Procedure and Function Default Action, select one of the following options:

• Execute – Executes the procedure when you double-click it in Database Explorer.
• Open Object Editor – Opens the procedure in Procedure Editor.

4. Click OK.

• In schema comparison results, right-click a procedure in the comparison grid and select Source Object or Target Object > Open Editor.

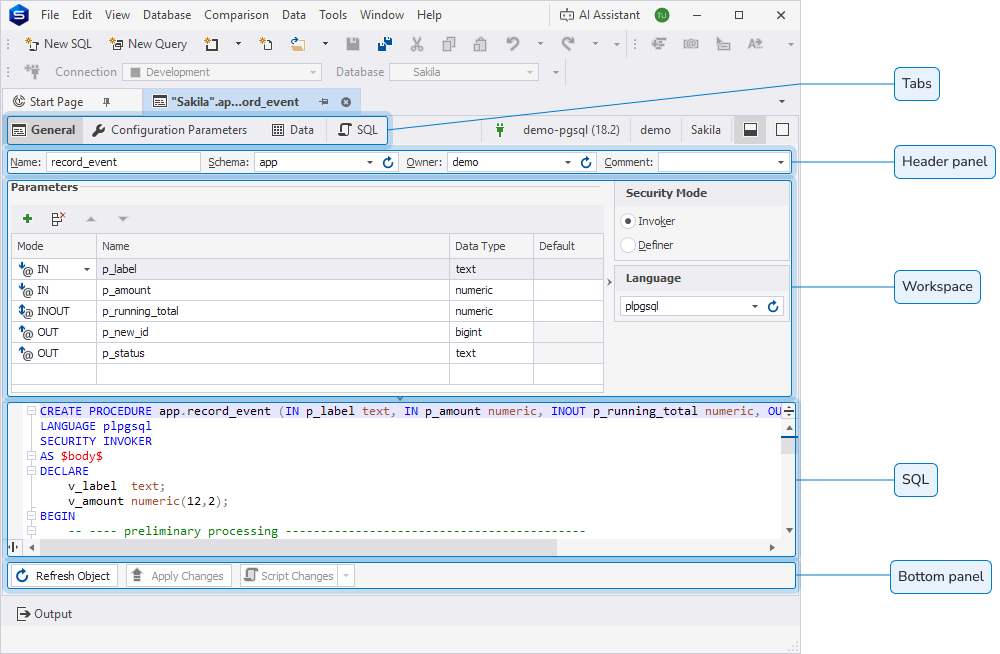

User interface concepts

Procedure Editor includes the following user interface elements:

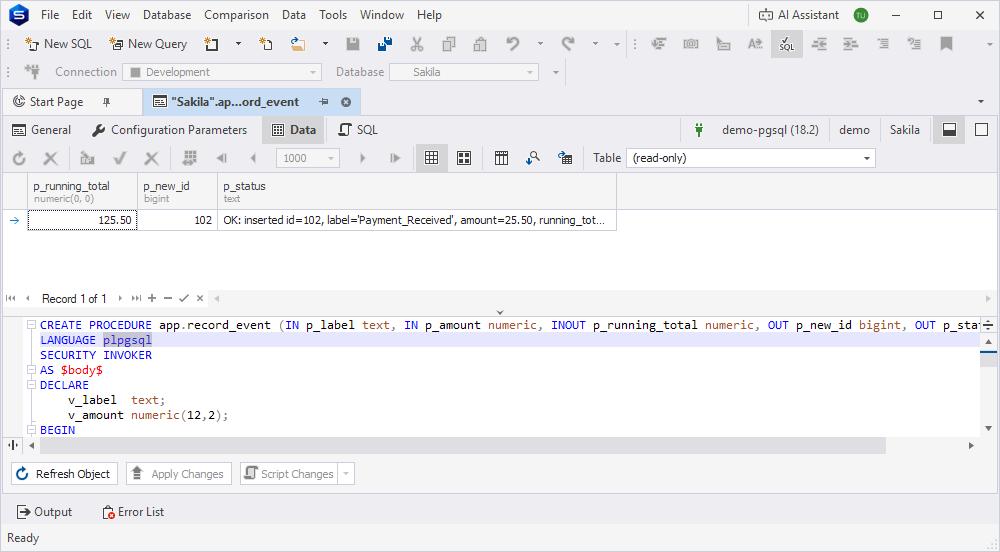

• Tabs – Use to switch between the General, Configuration Parameters, Data, and SQL sections of the editor.

• Header panel – Use to specify the procedure name, assign a schema and an owner, and add a comment.

• Workspace – Use to configure procedure parameters and settings.

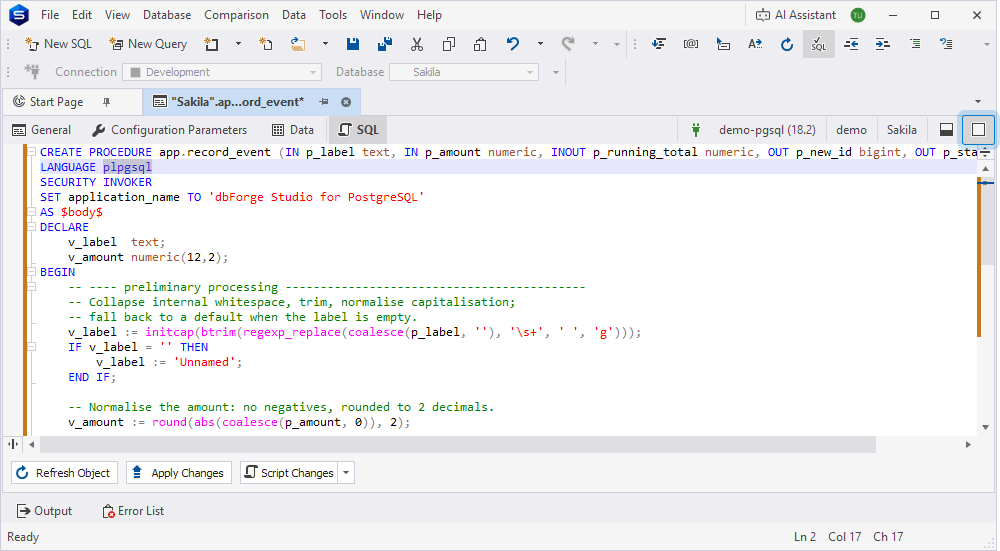

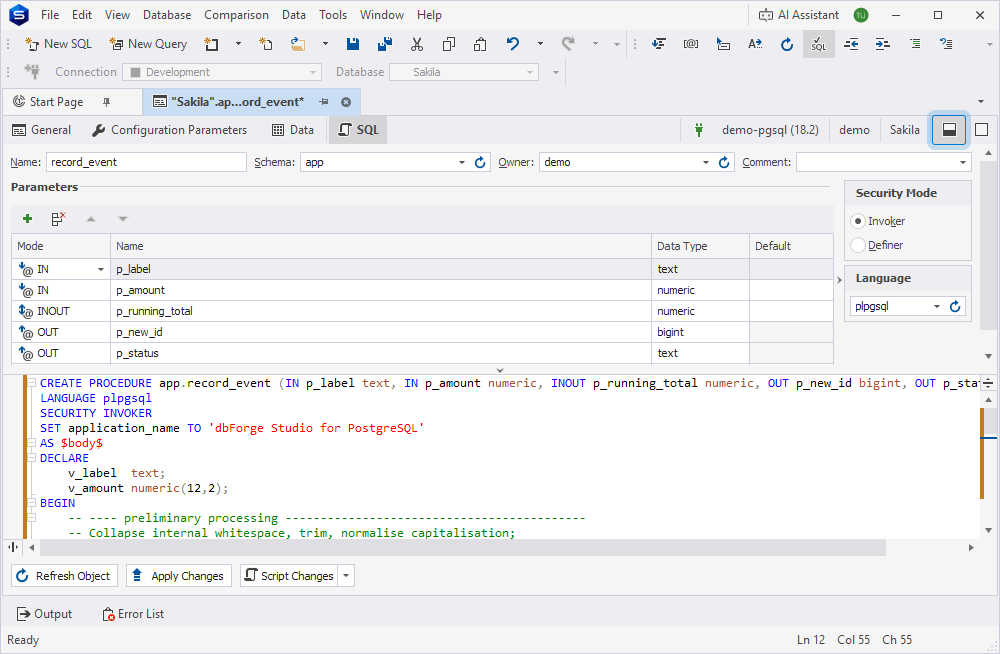

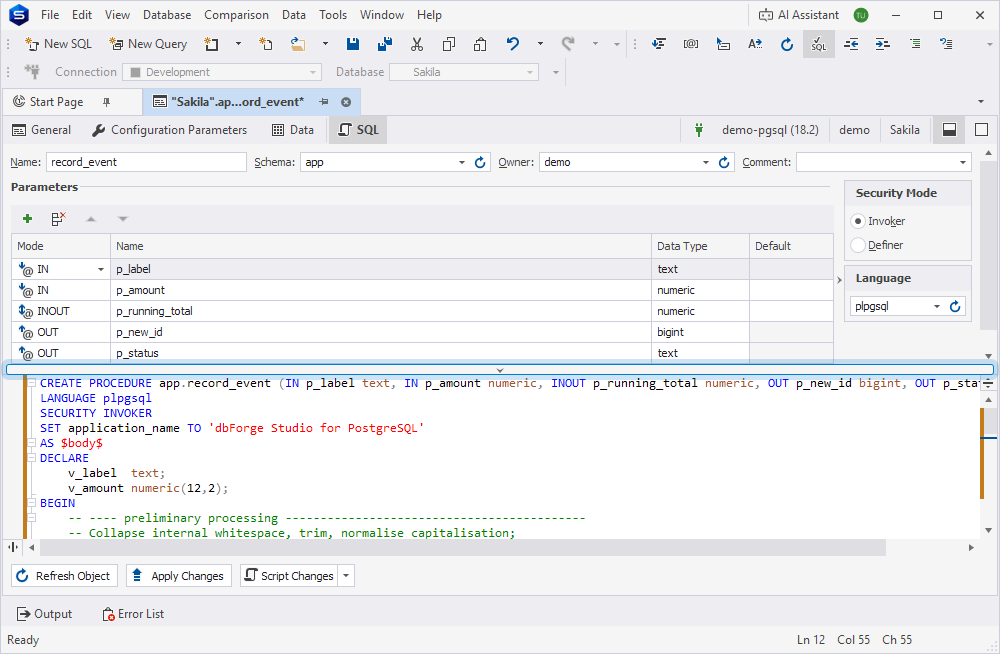

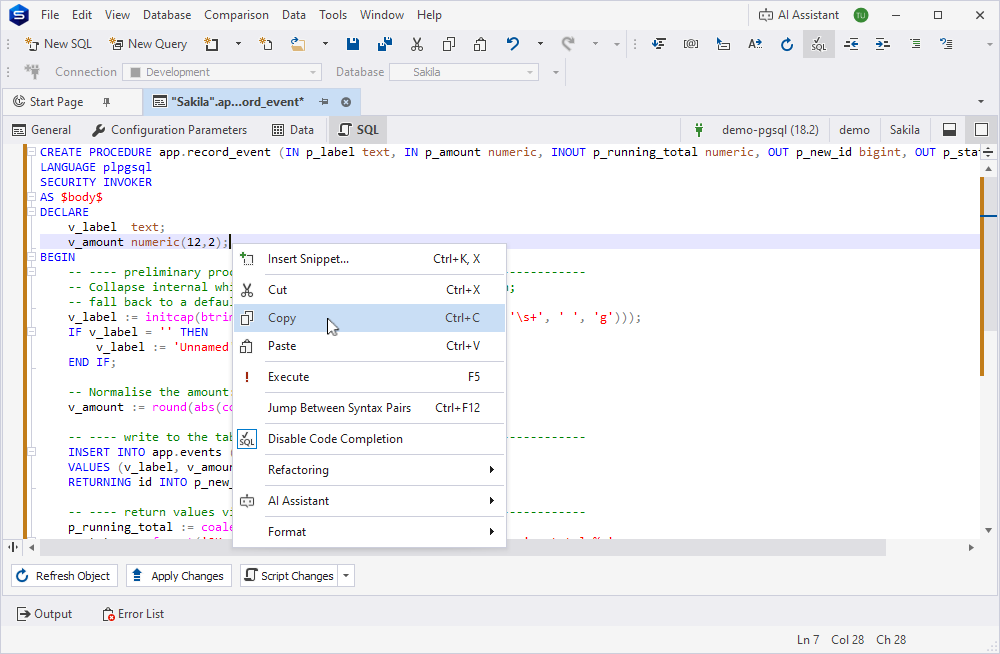

• SQL – Use to view and manage the DDL script, which automatically updates based on the properties you configure in the visual editor.

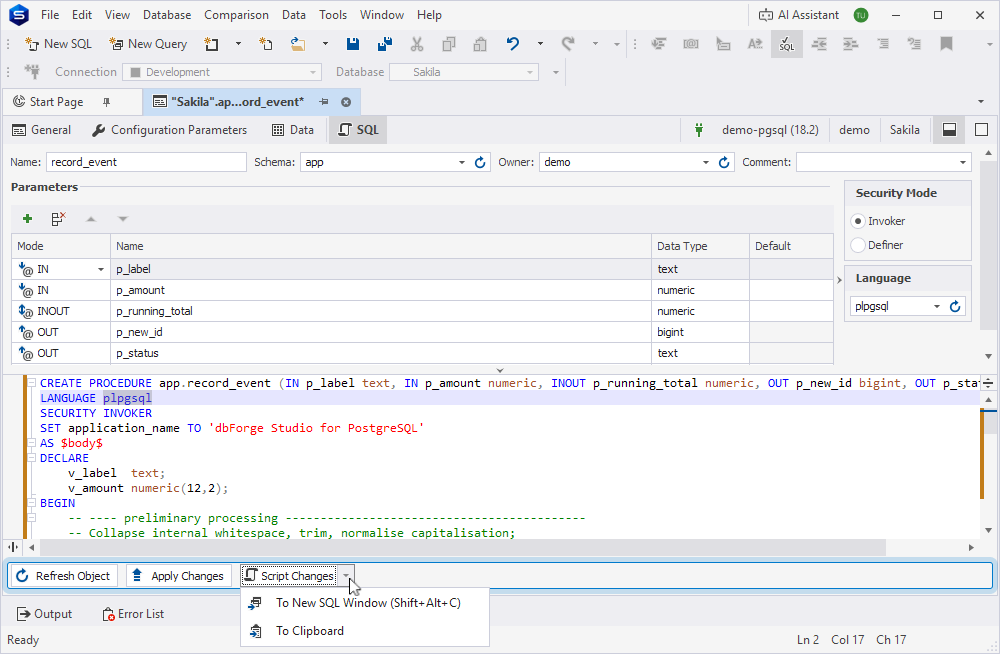

• Bottom panel – Use to refresh the object, apply changes, or generate a script for review before execution.

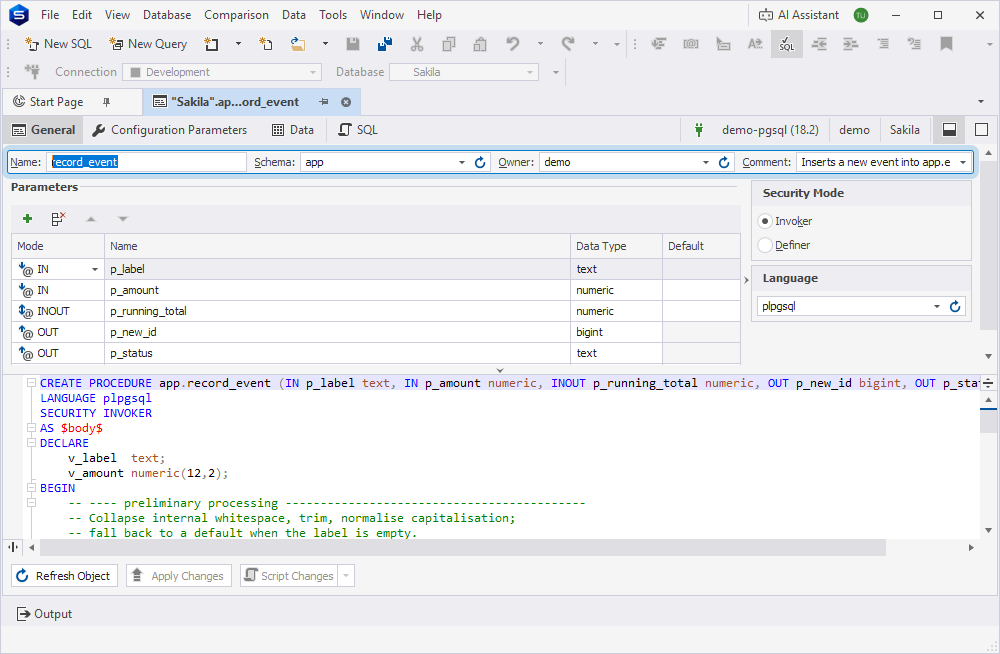

Header panel

You can use the header panel to specify the basic procedure details:

• Name (required) – Enter a procedure name. When you create a procedure, the default value is procedure1. If a procedure with this name already exists, the system generates a unique name by incrementing a numeric suffix, for example, procedure2, procedure3.

• Schema (optional) – Select the schema for the procedure from the dropdown list.

• Owner (optional) – Select the procedure owner from the dropdown list.

• Comment (optional) – Enter a procedure description. To open the comment in a full-text editor, click the arrow next to the field. To save the description, click OK. To discard the change, click Cancel.

Note

Comment isn’t available for Amazon Redshift.

Tip

To refresh the list of schemas and owners, click .

General tab

On the General tab, you can configure procedure parameters and execution settings.

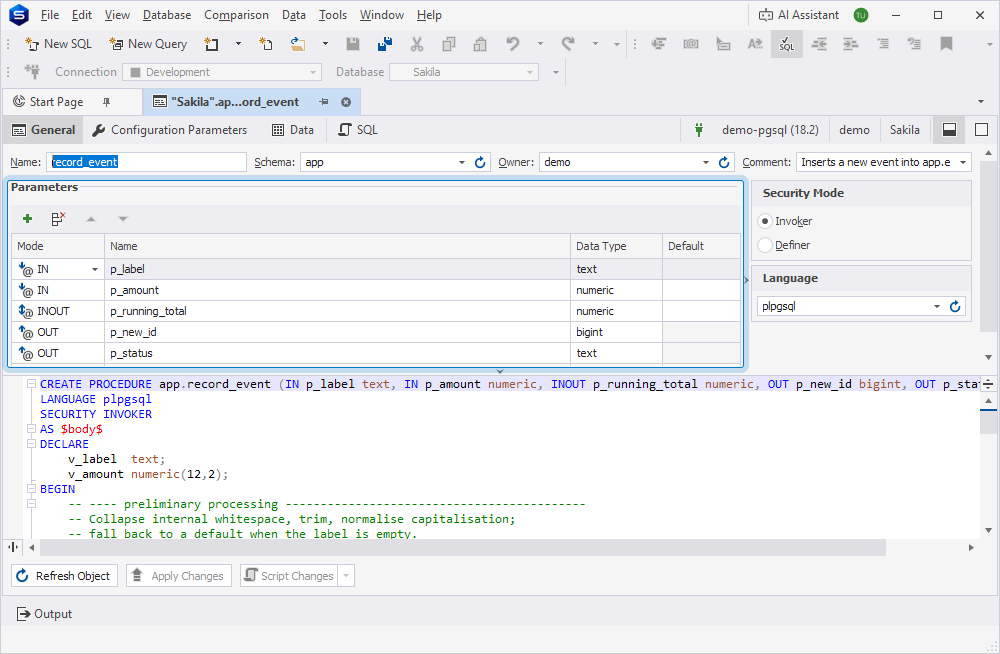

Configure procedure parameters

In the Parameters grid, you can configure procedure parameters.

1. In Mode, select the parameter mode. Available options are IN, INOUT, OUT, and VARIADIC. If you leave this field empty, the mode defaults to IN.

Note

VARIADIC isn’t available for Amazon Redshift.

Only one VARIADIC parameter is allowed in a parameter list.

Only OUT parameters are allowed after a VARIADIC parameter. If you add a new IN or INOUT parameter below an existing VARIADIC parameter, Procedure Editor automatically moves the new parameter above VARIADIC and regenerates the DDL script accordingly.

2. In Name, enter the parameter name. You can use only letters, digits, and underscores. The parameter name is required and must be unique within the parameter list.

3. In Data Type, the data type is filled in automatically based on the parameter name. To change the data type, select the required data type from the dropdown list.

4. Optional: In Default, enter the default value for the parameter. This field is available for parameters with the IN or INOUT mode.

Tip

• To add a parameter, click or right-click the grid and select Add. Alternatively, press Ins.

• To remove the selected parameter, click or right-click the grid and select Delete. Alternatively, press Ctrl+Del.

• To reorder the selected parameter, click or to move it up or down, or right-click the grid and select Move Up or Move Down. The order of parameters in the grid matches their order in the generated DDL script.

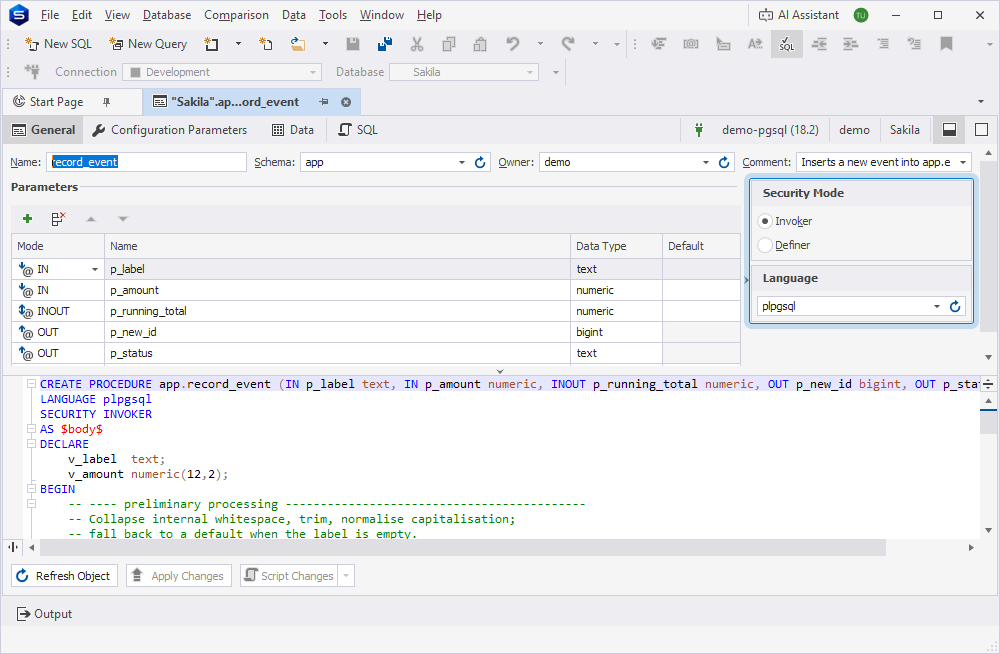

Configure procedure settings

In the workspace, you can configure the following procedure execution settings.

Security Mode

Property name	Description
Invoker	Executes the procedure with the privileges of the user who called it. Note: The property is set by default.
Definer	Executes the procedure with the privileges of the procedure owner.

Language

Property name	Description
Language	Specifies the procedural language used to implement the procedure body. Available options are plpgsql (default), sql, c, and internal. Note: For Amazon Redshift, this option is hidden because plpgsql is the only language it supports.

Tip

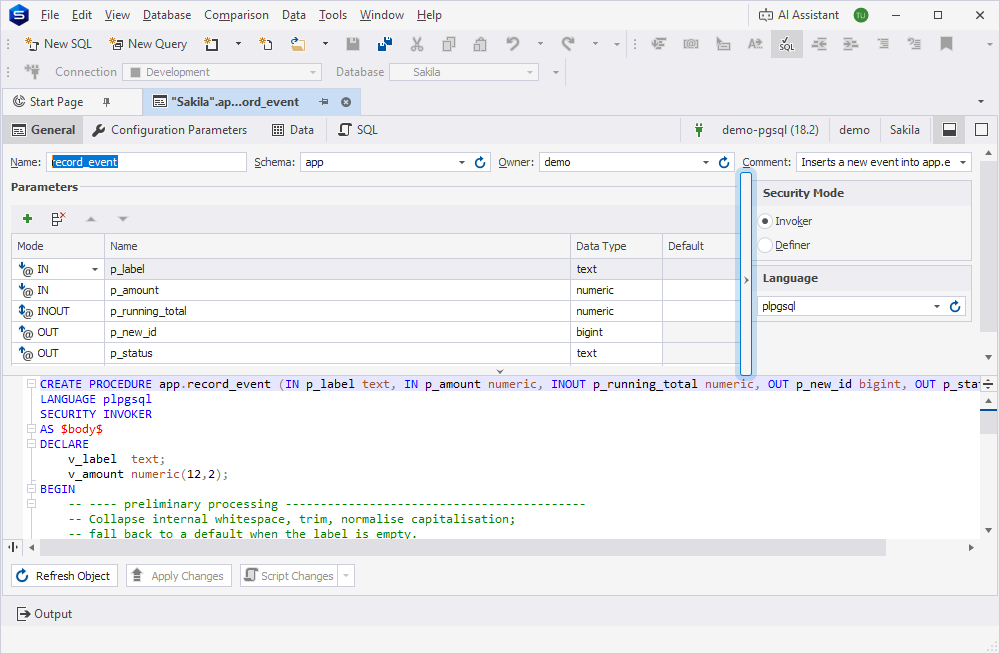

To hide the panel with procedure settings, click the vertical splitter or drag it to the right.

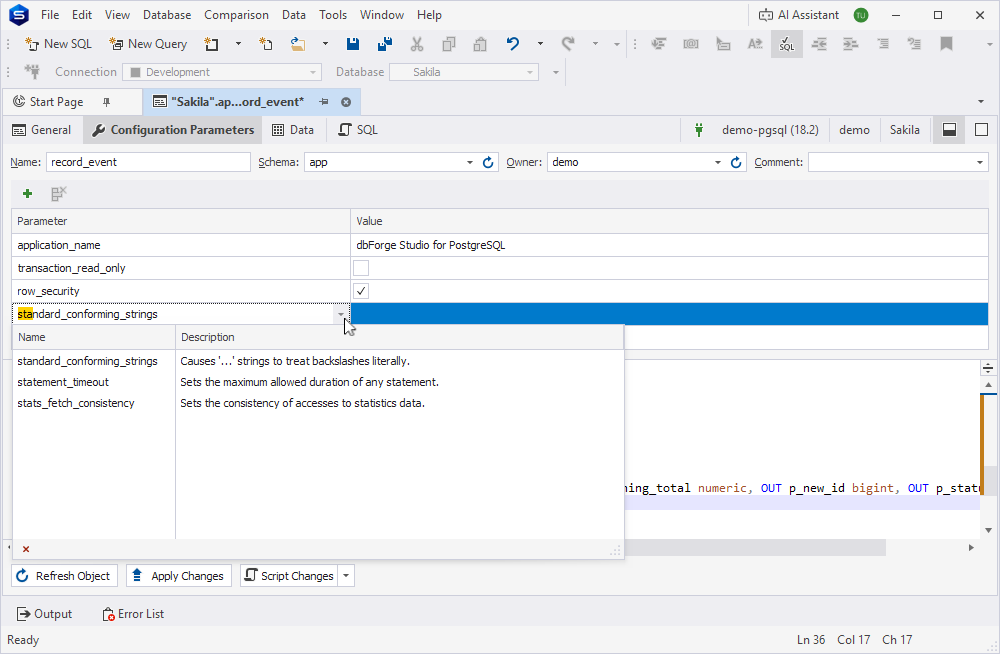

Configuration Parameters tab

On the Configuration Parameters tab, you can configure server parameters that apply only when the procedure is executed.

Note

The Configuration Parameters tab isn’t available for Amazon Redshift.

To configure server parameters for the procedure:

1. In Parameter, select a parameter from the list of available configuration parameters. To narrow down the list, start entering the parameter name.

2. In Value, enter the parameter value. For boolean parameters, select or clear the checkbox instead.

Tip

• To add a parameter, click above the grid or right-click the grid and select Add. Alternatively, press Ins.

• To remove the selected parameter, click above the grid or right-click the grid and select Delete. Alternatively, press Ctrl+Del.

Available configuration parameters

The following table provides a short description of configuration parameters available in Procedure Editor. For more information about PostgreSQL parameters, see the official documentation.

Click to view the list of available configuration parameters.

Parameter	Description
allow_in_place_tablespaces	Allows tablespaces directly inside pg_tblspc, for testing.
allow_system_table_mods	Allows modifications of the structure of system tables.
application_name	Sets the application name to be reported in statistics and logs.
array_nulls	Enables input of NULL elements in arrays.
backend_flush_after	Sets the number of pages after which previously performed writes are flushed to disk.
backslash_quote	Sets whether \ is allowed in string literals.
backtrace_functions	Logs backtrace for errors in these functions.
bytea_output	Sets the output format for bytea.
check_function_bodies	Checks routine bodies during CREATE FUNCTION and CREATE PROCEDURE.
client_connection_check_interval	Sets the time interval between checks for disconnection while running queries.
client_encoding	Sets the client’s character set encoding.
client_min_messages	Sets the message levels that are sent to the client.
commit_delay	Sets the delay in microseconds between transaction commit and flushing WAL to disk.
commit_siblings	Sets the minimum number of concurrent open transactions required before performing commit_delay.
compute_query_id	Enables in-core computation of query identifiers.
constraint_exclusion	Enables the planner to use constraints to optimize queries.
cpu_index_tuple_cost	Sets the planner’s estimate of the cost of processing each index entry during an index scan.
cpu_operator_cost	Sets the planner’s estimate of the cost of processing each operator or function call.
cpu_tuple_cost	Sets the planner’s estimate of the cost of processing each tuple (row).
createrole_self_grant	Sets whether a CREATEROLE user automatically grants the role to themselves, and with which options.
cursor_tuple_fraction	Sets the planner’s estimate of the fraction of a cursor’s rows that are retrieved.
DateStyle	Sets the display format for date and time values.
deadlock_timeout	Sets the time to wait on a lock before checking for deadlock.
debug_discard_caches	Aggressively flushes system caches for debugging purposes.
debug_logical_replication_streaming	Forces immediate streaming or serialization of changes in large transactions.
debug_parallel_query	Forces the planner’s use of parallel query nodes.
debug_pretty_print	Indents parse and plan tree displays.
debug_print_parse	Logs each query’s parse tree.
debug_print_plan	Logs each query’s execution plan.
debug_print_rewritten	Logs each query’s rewritten parse tree.
default_statistics_target	Sets the default statistics target.
default_table_access_method	Sets the default table access method for new tables.
default_tablespace	Sets the default tablespace to create tables and indexes in.
default_text_search_config	Sets default text search configuration.
default_toast_compression	Sets the default compression method for compressible values.
default_transaction_deferrable	Sets the default deferrable status of new transactions.
default_transaction_isolation	Sets the transaction isolation level of each new transaction.
default_transaction_read_only	Sets the default read-only status of new transactions.
dynamic_library_path	Sets the path for dynamically loadable modules.
effective_cache_size	Sets the planner’s assumption about the total size of the data caches.
effective_io_concurrency	Sets the number of simultaneous requests that can be handled efficiently by the disk subsystem.
enable_async_append	Enables the planner’s use of async append plans.
enable_bitmapscan	Enables the planner’s use of bitmap-scan plans.
enable_distinct_reordering	Enables reordering of DISTINCT keys.
enable_gathermerge	Enables the planner’s use of gather merge plans.
enable_group_by_reordering	Enables reordering of GROUP BY keys.
enable_hashagg	Enables the planner’s use of hashed aggregation plans.
enable_hashjoin	Enables the planner’s use of hash join plans.
enable_incremental_sort	Enables the planner’s use of incremental sort steps.
enable_indexonlyscan	Enables the planner’s use of index-only-scan plans.
enable_indexscan	Enables the planner’s use of index-scan plans.
enable_material	Enables the planner’s use of materialization.
enable_memoize	Enables the planner’s use of memoization.
enable_mergejoin	Enables the planner’s use of merge join plans.
enable_nestloop	Enables the planner’s use of nested-loop join plans.
enable_parallel_append	Enables the planner’s use of parallel append plans.
enable_parallel_hash	Enables the planner’s use of parallel hash plans.
enable_partition_pruning	Enables plan-time and execution-time partition pruning.
enable_partitionwise_aggregate	Enables partitionwise aggregation and grouping.
enable_partitionwise_join	Enables partitionwise join.
enable_presorted_aggregate	Enables the planner’s ability to produce plans that provide presorted input for ORDER BY / DISTINCT aggregate functions.
enable_self_join_elimination	Enables removal of unique self-joins.
enable_seqscan	Enables the planner’s use of sequential-scan plans.
enable_sort	Enables the planner’s use of explicit sort steps.
enable_tidscan	Enables the planner’s use of TID scan plans.
escape_string_warning	Warns about backslash escapes in ordinary string literals.
event_triggers	Enables event triggers.
exit_on_error	Terminates session on any error.
extension_control_path	Sets the path for extension control files.
extra_float_digits	Sets the number of digits displayed for floating-point values.
file_copy_method	Selects the file copy method.
from_collapse_limit	Sets the FROM-list size beyond which subqueries are not collapsed.
geqo	Enables genetic query optimization.
geqo_effort	Sets the GEQO effort used to determine the default for other GEQO parameters.
geqo_generations	Sets the number of iterations of the GEQO algorithm.
geqo_pool_size	Sets the number of individuals in the GEQO population.
geqo_seed	Sets the GEQO seed for random path selection.
geqo_selection_bias	Sets the selective pressure within the GEQO population.
geqo_threshold	Sets the threshold of FROM items beyond which GEQO is used.
gin_fuzzy_search_limit	Sets the maximum allowed result for exact search by GIN.
gin_pending_list_limit	Sets the maximum size of the pending list for GIN index.
hash_mem_multiplier	Sets the multiple of work_mem to use for hash tables.
icu_validation_level	Sets the log level for reporting invalid ICU locale strings.
idle_in_transaction_session_timeout	Sets the maximum allowed idle time between queries, when in a transaction.
idle_session_timeout	Sets the maximum allowed idle time between queries, when not in a transaction.
ignore_checksum_failure	Continues processing after a checksum failure.
IntervalStyle	Sets the display format for interval values.
io_combine_limit	Limits the size of data reads and writes.
jit	Allows JIT compilation.
jit_above_cost	Performs JIT compilation if query is more expensive.
jit_dump_bitcode	Writes out LLVM bitcode to facilitate JIT debugging.
jit_expressions	Allows JIT compilation of expressions.
jit_inline_above_cost	Performs JIT inlining if query is more expensive.
jit_optimize_above_cost	Optimizes JIT-compiled functions if query is more expensive.
jit_tuple_deforming	Allows JIT compilation of tuple deforming.
join_collapse_limit	Sets the FROM-list size beyond which JOIN constructs are not flattened.
lc_messages	Sets the language in which messages are displayed.
lc_monetary	Sets the locale for formatting monetary amounts.
lc_numeric	Sets the locale for formatting numbers.
lc_time	Sets the locale for formatting date and time values.
local_preload_libraries	Lists unprivileged shared libraries to preload into each backend.
lock_timeout	Sets the maximum allowed duration of any wait for a lock.
lo_compat_privileges	Enables backward compatibility mode for privilege checks on large objects.
log_duration	Logs the duration of each completed SQL statement.
log_error_verbosity	Sets the verbosity of logged messages.
log_executor_stats	Writes executor performance statistics to the server log.
logical_decoding_work_mem	Sets the maximum memory to be used for logical decoding.
log_lock_failures	Logs lock failures.
log_lock_waits	Logs long lock waits.
log_min_duration_sample	Sets the minimum execution time above which a sample of statements is logged. Sampling is determined by log_statement_sample_rate.
log_min_duration_statement	Sets the minimum execution time above which all statements are logged.
log_min_error_statement	Causes all statements generating error at or above this level to be logged.
log_min_messages	Sets the message levels that are logged.
log_parameter_max_length	Sets the maximum length in bytes of data logged for bind parameter values when logging statements.
log_parameter_max_length_on_error	Sets the maximum length in bytes of data logged for bind parameter values when logging statements, on error.
log_parser_stats	Writes parser performance statistics to the server log.
log_planner_stats	Writes planner performance statistics to the server log.
log_replication_commands	Logs each replication command.
log_statement	Sets the type of statements logged.
log_statement_sample_rate	Sets the fraction of statements exceeding log_min_duration_sample to be logged.
log_statement_stats	Writes cumulative performance statistics to the server log.
log_temp_files	Logs the use of temporary files larger than this number of kilobytes.
log_transaction_sample_rate	Sets the fraction of transactions from which to log all statements.
maintenance_io_concurrency	Sets a variant of effective_io_concurrency that is used for maintenance work.
maintenance_work_mem	Sets the maximum memory to be used for maintenance operations.
max_parallel_maintenance_workers	Sets the maximum number of parallel processes per maintenance operation.
max_parallel_workers	Sets the maximum number of parallel workers that can be active at one time.
max_parallel_workers_per_gather	Sets the maximum number of parallel processes per executor node.
max_stack_depth	Sets the maximum stack depth, in kilobytes.
md5_password_warnings	Enables deprecation warnings for MD5 passwords.
min_parallel_index_scan_size	Sets the minimum amount of index data for a parallel scan.
min_parallel_table_scan_size	Sets the minimum amount of table data for a parallel scan.
parallel_leader_participation	Controls whether Gather and Gather Merge also run subplans.
parallel_setup_cost	Sets the planner’s estimate of the cost of starting up worker processes for parallel query.
parallel_tuple_cost	Sets the planner’s estimate of the cost of passing each tuple (row) from worker to leader backend.
password_encryption	Chooses the algorithm for encrypting passwords.
plan_cache_mode	Controls the planner’s selection of custom or generic plan.
quote_all_identifiers	Quotes all identifiers when generating SQL fragments.
random_page_cost	Sets the planner’s estimate of the cost of a nonsequentially fetched disk page.
recursive_worktable_factor	Sets the planner’s estimate of the average size of a recursive query’s working table.
restrict_nonsystem_relation_kind	Prohibits access to non-system relations of specified kinds.
row_security	Enables row security.
scram_iterations	Sets the iteration count for SCRAM secret generation.
search_path	Sets the schema search order for names that are not schema-qualified.
seq_page_cost	Sets the planner’s estimate of the cost of a sequentially fetched disk page.
session_preload_libraries	Lists shared libraries to preload into each backend.
session_replication_role	Sets the session’s behavior for triggers and rewrite rules.
standard_conforming_strings	Causes '...' strings to treat backslashes literally.
statement_timeout	Sets the maximum allowed duration of any statement.
stats_fetch_consistency	Sets the consistency of accesses to statistics data.
synchronize_seqscans	Enables synchronized sequential scans.
synchronous_commit	Sets the current transaction’s synchronization level.
tcp_keepalives_count	Sets the maximum number of TCP keepalive retransmits.
tcp_keepalives_idle	Sets the time between issuing TCP keepalives.
tcp_keepalives_interval	Sets the time between TCP keepalive retransmits.
tcp_user_timeout	Sets the TCP user timeout.
temp_buffers	Sets the maximum number of temporary buffers used by each session.
temp_file_limit	Limits the total size of all temporary files used by each process.
temp_tablespaces	Sets the tablespace(s) to use for temporary tables and sort files.
TimeZone	Sets the time zone for displaying and interpreting time stamps.
timezone_abbreviations	Selects a file of time zone abbreviations.
trace_notify	Generates debugging output for LISTEN and NOTIFY.
trace_sort	Emits information about resource usage in sorting.
track_activities	Collects information about executing commands.
track_cost_delay_timing	Collects timing statistics for cost-based vacuum delay.
track_counts	Collects statistics on database activity.
track_functions	Collects function-level statistics on database activity.
track_io_timing	Collects timing statistics for database I/O activity.
track_wal_io_timing	Collects timing statistics for WAL I/O activity.
transaction_deferrable	Determines whether to defer a read-only serializable transaction until it can be executed with no possible serialization failures.
transaction_isolation	Sets the current transaction’s isolation level.
transaction_read_only	Sets the current transaction’s read-only status.
transaction_timeout	Sets the maximum allowed duration of any transaction within a session (not a prepared transaction).
transform_null_equals	Treats expr=NULL as expr IS NULL.
update_process_title	Updates the process title to show the active SQL command.
vacuum_buffer_usage_limit	Sets the buffer pool size for VACUUM, ANALYZE, and autovacuum.
vacuum_cost_delay	Sets the vacuum cost delay in milliseconds.
vacuum_cost_limit	Sets the vacuum cost amount available before napping.
vacuum_cost_page_dirty	Sets the vacuum cost for a page dirtied by vacuum.
vacuum_cost_page_hit	Sets the vacuum cost for a page found in the buffer cache.
vacuum_cost_page_miss	Sets the vacuum cost for a page not found in the buffer cache.
vacuum_failsafe_age	Sets the age at which VACUUM should trigger failsafe to avoid a wraparound outage.
vacuum_freeze_min_age	Sets the minimum age at which VACUUM should freeze a table row.
vacuum_freeze_table_age	Sets the age at which VACUUM should scan whole table to freeze tuples.
vacuum_max_eager_freeze_failure_rate	Sets the fraction of pages in a relation vacuum can scan and fail to freeze before disabling eager scanning.
vacuum_multixact_failsafe_age	Sets the multixact age at which VACUUM should trigger failsafe to avoid a wraparound outage.
vacuum_multixact_freeze_min_age	Sets the minimum age at which VACUUM should freeze a MultiXactId in a table row.
vacuum_multixact_freeze_table_age	Sets the multixact age at which VACUUM should scan whole table to freeze tuples.
vacuum_truncate	Enables vacuum to truncate empty pages at the end of the table.
wal_compression	Compresses full-page writes written in WAL file with specified method.
wal_consistency_checking	Sets the WAL resource managers for which WAL consistency checks are done.
wal_init_zero	Writes zeros to new WAL files before first use.
wal_recycle	Recycles WAL files by renaming them.
wal_sender_timeout	Sets the maximum time to wait for WAL replication.
wal_skip_threshold	Sets the minimum size of new file to fsync instead of writing WAL.
work_mem	Sets the maximum memory to be used for query workspaces.
xmlbinary	Sets how binary values are to be encoded in XML.
xmloption	Sets whether XML data in implicit parsing and serialization operations is to be considered as documents or content fragments.
zero_damaged_pages	Continues processing past damaged page headers.

Data tab

On the Data tab, you can view the data returned by the procedure.

For more information about how to work with table data, see View data in the grid.

SQL tab

On the SQL tab, you can view the CREATE PROCEDURE or ALTER PROCEDURE DDL statements, which automatically update based on the properties you configure in the visual editor.

You can use the shortcut menu to copy, execute, or format the script, or use AI Assistant. Right-click anywhere in the editor and select the required option.

Procedure Editor layout

Procedure Editor supports two layouts: split and combined.

Split layout

By default, Procedure Editor opens in the split layout.

To switch from the combined layout to the split layout, in the upper-right corner of the editor, click .

To hide the SQL editor, click the horizontal splitter or drag it down.

Combined layout

To switch to the combined layout, in the upper-right corner of the editor, click .

In the combined layout, only one view is displayed at a time.

Bottom panel

You can use the bottom panel to refresh the object, apply changes, or generate a script for review before execution.

Refresh an object

To load the latest object definition from the server, click Refresh Object. If no changes are detected, the editor remains unchanged.

Save changes

An asterisk (*) on the tab title indicates unsaved changes. To save and apply them, click Apply Changes.

Generate a script

To view the generated script in a new SQL document, click Script Changes. This script shows the changes to be applied when you click Apply Changes.

You can click the arrow next to Script Changes and select one of the following options:

• To New SQL Window (Shift+Alt+C) – Opens the script in a new SQL document.
• To Clipboard – Copies the script to the clipboard.

Note

Apply Changes and Script Changes are available only after you make changes to the procedure.
