    Using Entity Framework Implementation of ASP.NET Identity 1 for PostgreSQL
    In This Topic

    ASP.NET Identity is a new system of user authentication and authorization, that continues the evolution of ASP.NET membership system, and is used in the Visual Studio 2013 project templates for ASP.NET MVC, Web Forms, Web API and SPA. You can read more on ASP.NET Identity in Microsoft documentation.

    dotConnect for PostgreSQL enables you to employ an implementation of ASP.NET Identity for PostgreSQL database using either ADO.NET or Entity Framework functionality in your web applications. This allows you to use such ASP.NET Identity benefits as unit-testable user authentication system, social login support, OWIN integration, etc. This tutorial demonstrates creating an Entity Framework implementation of ASP.NET Identity.

    To complete this tutorial you need Visual Studio 2013 installed.

    In order to create an ASP.NET MVC 5 application using dotConnect for PostgreSQL for storing identity information, perform the following steps:

    1. In the Add New Project dialog box expand Visual C# on the left, then Web, and then select ASP.NET Web Application. Name your project, for example, "AspNet_Identity_Application" and then click OK.

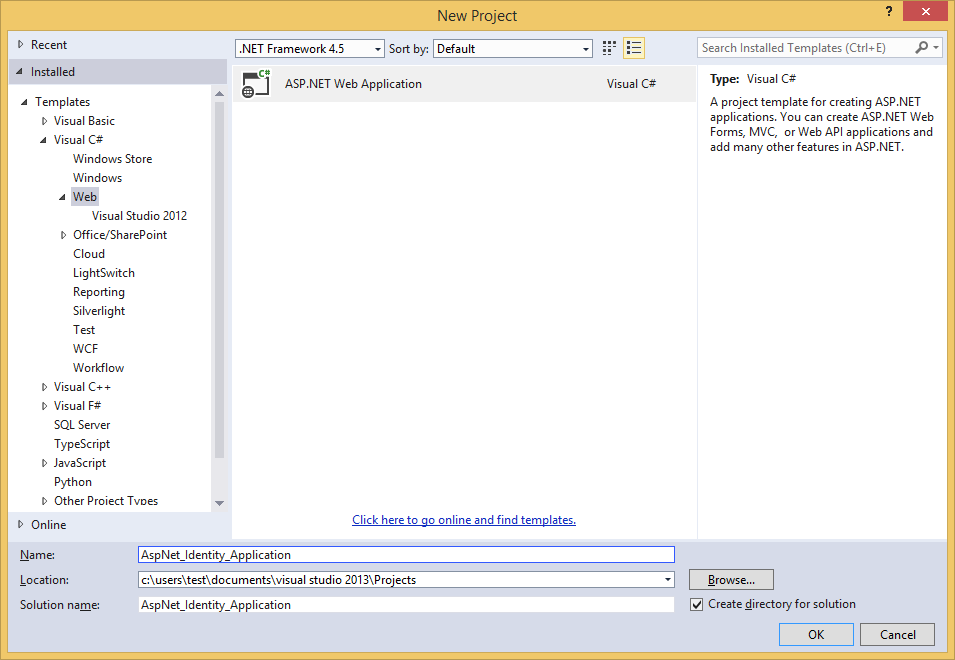

      Add New Project dialog box
    2. In the New ASP.NET Project dialog box, select the MVC template with the default options (that includes Individual User Accounts as authentication method) and click OK.

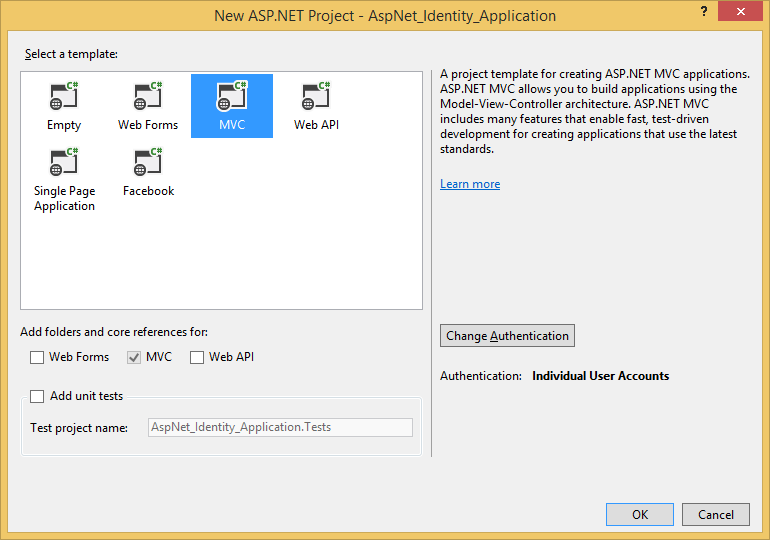

      New ASP.NET Project dialog box

    3. Add references to the necessary dotConnect for PostgreSQL assemblies:

      • Devart.Data.dll
      • Devart.Data.PostgreSql.dll
      • Devart.Data.PostgreSql.Entity.EF6.dll

      You need to add the last file from the Entity\EF6 subfolder of the dotConnect for PostgreSQL installation folder. Or you may add it from the GAC.

    4. In the web.config file of your project, replace the default connection string with your PostgreSQL one.

      <add name="DefaultConnection" connectionString="host=server;database=test;user id=postgres;" providerName="Devart.Data.PostgreSql" />

    5. Register the Entity Framework provider in the <providers> section of the web.config file

      Before the registration:

      	<providers>
      	  <provider invariantName="System.Data.SqlClient" type="System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer" />
      	</providers>


      After the registration:

      	<providers>
      	  <provider invariantName="System.Data.SqlClient" type="System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer" />
      	  <provider invariantName="Devart.Data.PostgreSql" type="Devart.Data.PostgreSql.Entity.PgSqlEntityProviderServices, Devart.Data.PostgreSql.Entity.EF6, Version=7.1.26.0, Culture=neutral, PublicKeyToken=09af7300eec23701" />
      	</providers>


      Note: replace "7.1.26.0" with the actual version.

    6. Open the IdentityModels.cs file from the Models project folder.
    7. Add the following namespaces to the using list:

      using System.Data.Entity;
      using System.Data.Entity.Migrations;


      Imports System.Data.Entity
      Imports System.Data.Entity.Migrations


    8. Add the new Configuration class and register the dotConnect for PostgreSQL provider SQL generator for Code-First Migrations.

      	internal class Configuration : DbMigrationsConfiguration<ApplicationDbContext>
      	{
      		public Configuration()
      		{
      			AutomaticMigrationsEnabled = true;
      			SetSqlGenerator("Devart.Data.PostgreSql", new Devart.Data.PostgreSql.Entity.Migrations.PgSqlEntityMigrationSqlGenerator());
      		}
      	}


      	Friend Class Configuration
      		Inherits DbMigrationsConfiguration(Of ApplicationDbContext)
      		Public Sub New()
      			AutomaticMigrationsEnabled = True
      			SetSqlGenerator("Devart.Data.PostgreSql", New Devart.Data.PostgreSql.Entity.Migrations.PgSqlEntityMigrationSqlGenerator())
      		End Sub
      	End Class


    9. Extend the ApplicationDbContext class code.

      We need to add a static constructor setting the database initializer for the context.

      After this we also need to add the OnModelCreating method, where we change type for character properties that aren't a part of entity key (they are filtered by their names) from the TEXT data type to VARCHAR(256) via a lightweight convention.

      The code before editing:

      	public class ApplicationDbContext : IdentityDbContext<ApplicationUser>
      	{
      		public ApplicationDbContext()
      			: base("DefaultConnection")
      		{
      		}
      	}


      	Public Class ApplicationDbContext
      		Inherits IdentityDbContext(Of ApplicationUser)
      		Public Sub New()
      			MyBase.New("DefaultConnection")
      		End Sub
      	End Class



      The code after editing:

      	public class ApplicationDbContext : IdentityDbContext<ApplicationUser>
      	{
      		public ApplicationDbContext()
      			: base("DefaultConnection")
      		{
      		}

      		static ApplicationDbContext()
      		{

      			Database.SetInitializer(new MigrateDatabaseToLatestVersion<ApplicationDbContext, Configuration>());
      		}

      		protected override void OnModelCreating(DbModelBuilder modelBuilder)
      		{

      			base.OnModelCreating(modelBuilder);

      			modelBuilder
      			  .Properties()
      			  .Where(p => p.PropertyType == typeof(string) &&
      						  !p.Name.Contains("Id") &&
      						  !p.Name.Contains("Provider"))
      			  .Configure(p => p.HasMaxLength(256));
      		}

      	}


      	Public Class ApplicationDbContext
      		Inherits IdentityDbContext(Of ApplicationUser)
      		Public Sub New()
      			MyBase.New("DefaultConnection")
      		End Sub

      		Shared Sub New()

      			Database.SetInitializer(New MigrateDatabaseToLatestVersion(Of ApplicationDbContext, Configuration)())
      		End Sub

      		Protected Overrides Sub OnModelCreating(modelBuilder As DbModelBuilder)

      			MyBase.OnModelCreating(modelBuilder)

      			modelBuilder.Properties().Where(Function(p) p.PropertyType = GetType(String) AndAlso Not _
      				p.Name.Contains("Id") AndAlso Not p.Name.Contains("Provider")).Configure(Function(p) _
      				p.HasMaxLength(256))
      		End Sub
      	End Class



    Checking Application

    Now we can run our application and check if everything works correctly.

    1. Run the application by pressing CTRL+F5.

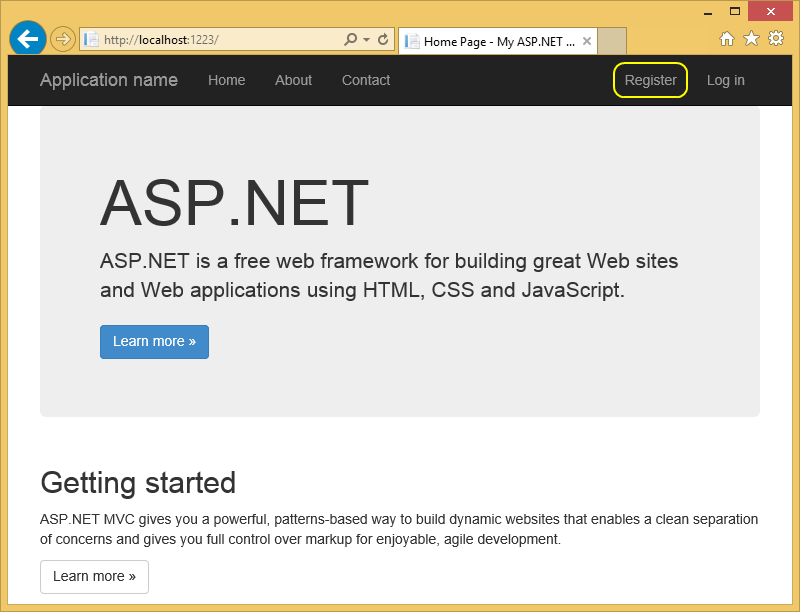

      Getting started page
    2. Switch to the Register tab on the top of the page.

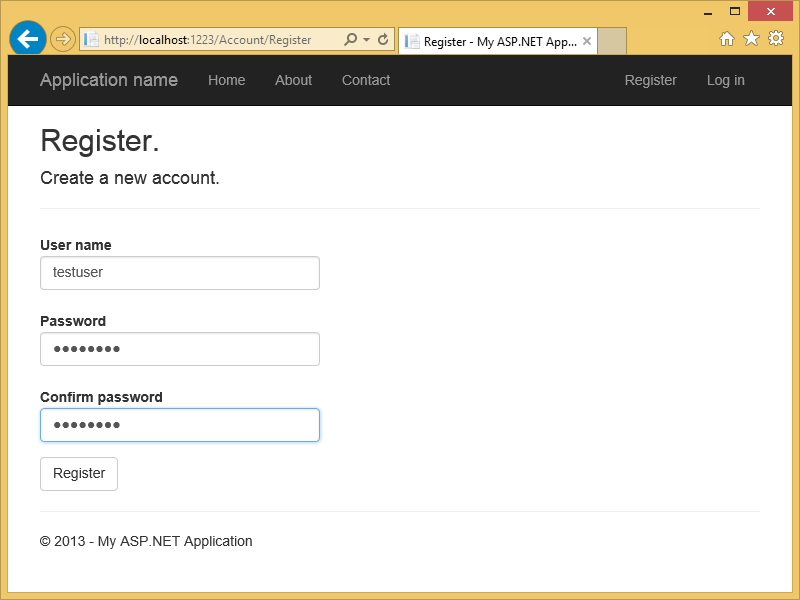

      Registration page
    3. Enter a new user name and password to the corresponding boxes and click the Register button.
    4. The new user is now registered and logged in, and the ASP.NET Identity tables are created in the PostgreSQL database.

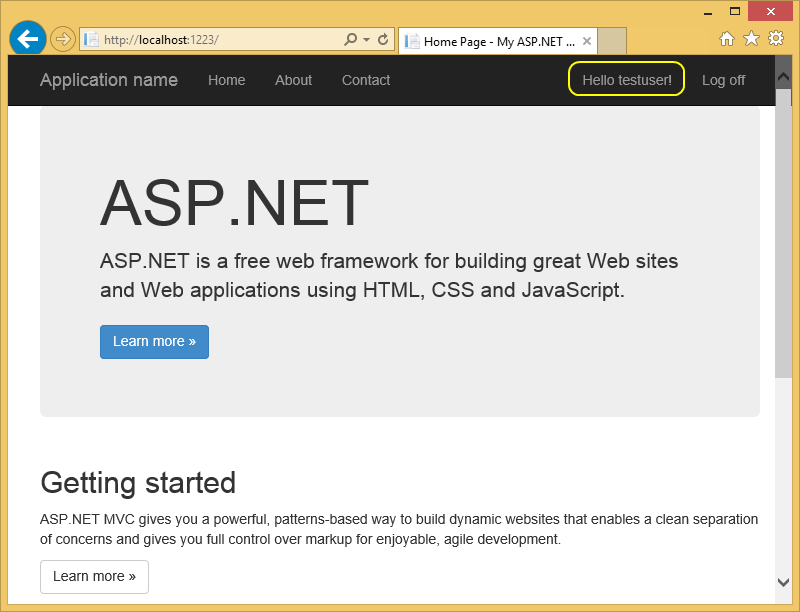

      User is registered
    5. After this you may use an appropriate database tool to connect to the database where the user data is stored and verify that the data is stored correctly.
