Insert columns with the column picker

The column picker in dbForge Studio for SQL Server enables the selection of multiple columns for tables or views. The column picker appears in SELECT and INSERT statements and in GROUP BY and ORDER BY clauses.

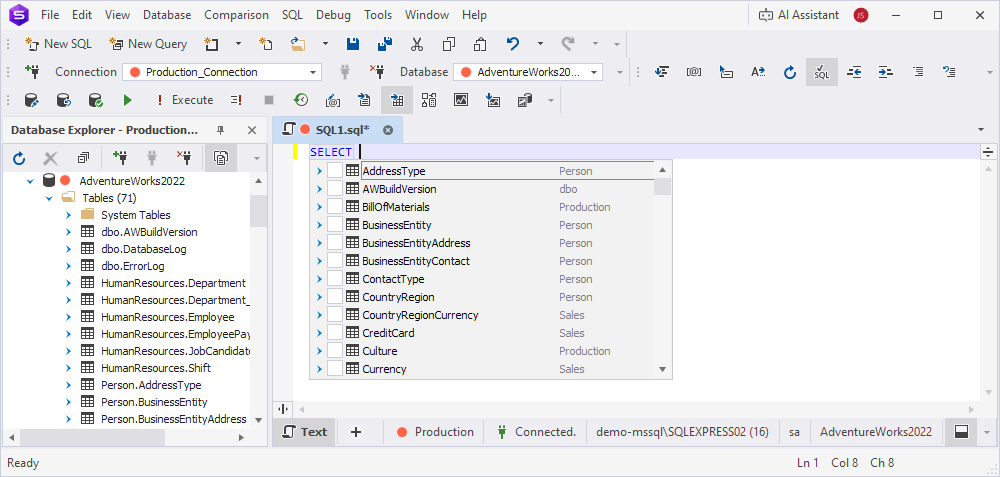

Column Picker

When you start typing the column name, the list of columns is filtered to show only those that match the entered characters.

After you select and insert the columns you need, the statement or clause is automatically completed with the selected columns and a FROM clause that includes the corresponding table or view.

Here are the examples of what the column picker displays depending on where it’s invoked:

  • In the SELECT statement with the table indicated in the FROM clause.

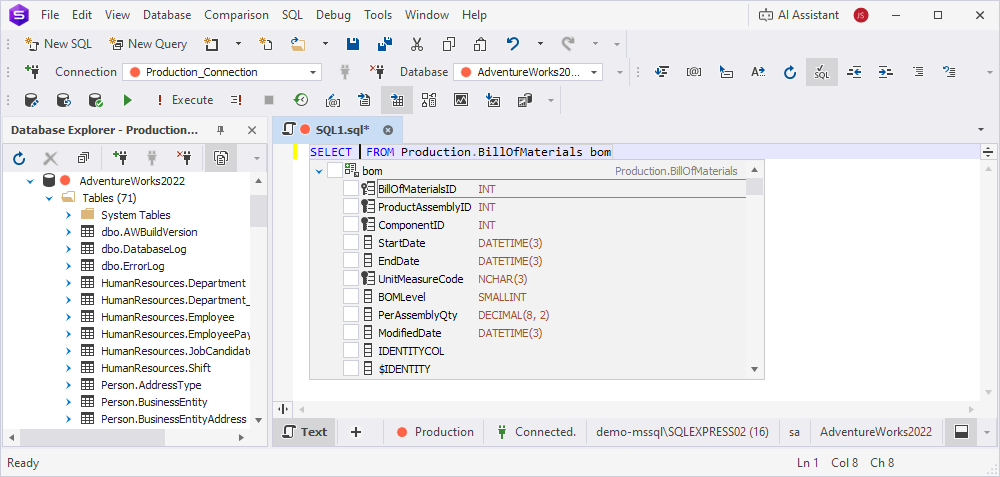

Suggestions for a SELECT statement

  • In the SELECT statement followed by the JOIN clause.

Suggestions for a SELECT statement with JOIN

  • In the ORDER BY clause for a CTE query.

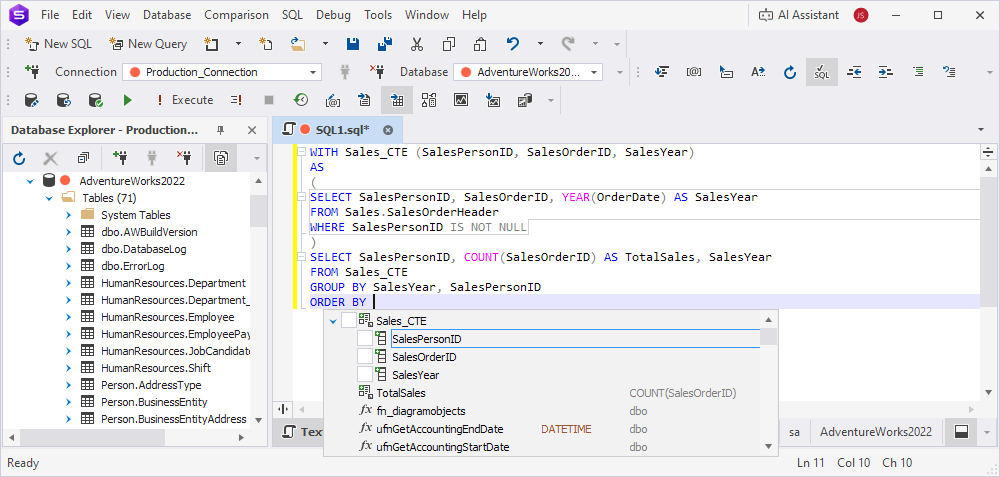

Suggestions for an ORDER BY clause

Select columns

  • Press the Up and Down arrow keys to navigate through the list.

  • Press the Spacebar or the Insert key to select or deselect columns in the column picker.

Insert selected columns

Press Enter to insert the selected columns. The columns are inserted in the order in which you selected them.

Qualified column names

Inserted column names are qualified in the following cases:

  • The Qualify column name with table alias or Qualify column name (no table alias) option is enabled in Tools > Options > Text Editor > Code Completion > Advanced.

  • Multiple tables are specified in the FROM clause, which can result in ambiguous column names. Only columns that appear in more than one table are automatically qualified.

Example 1.

The Qualify column name with table alias option is enabled, and the table has an alias. The Studio qualifies the inserted columns with the table alias.

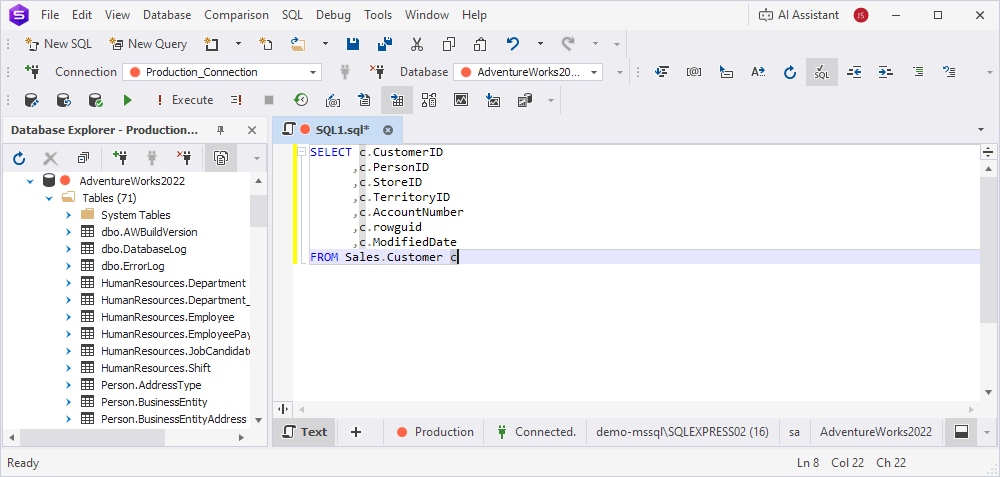

Columns qualified with a table alias

Example 2.

The Qualify column name with table alias and Qualify column name (no table alias) options are disabled. The Studio automatically qualifies certain columns with corresponding table names to avoid ambiguity.

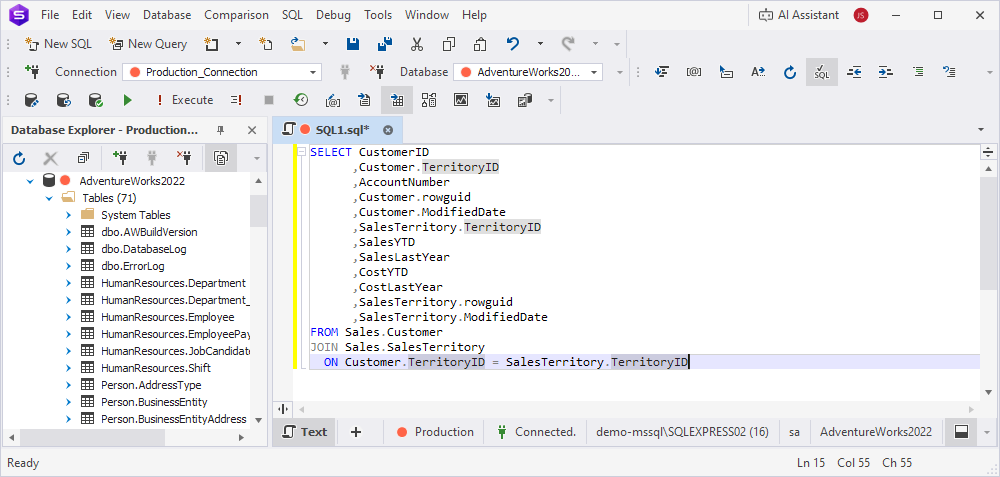

Columns automatically qualified with table names

Non-aggregated columns in GROUP BY

After you type the GROUP BY keyword and a space, a suggestion box with a list of non-aggregated columns appears.

You can insert all non-aggregated columns at once by selecting the SELECT List checkbox, or select them one by one in the needed order. When you select a column, it’s automatically added to the query.

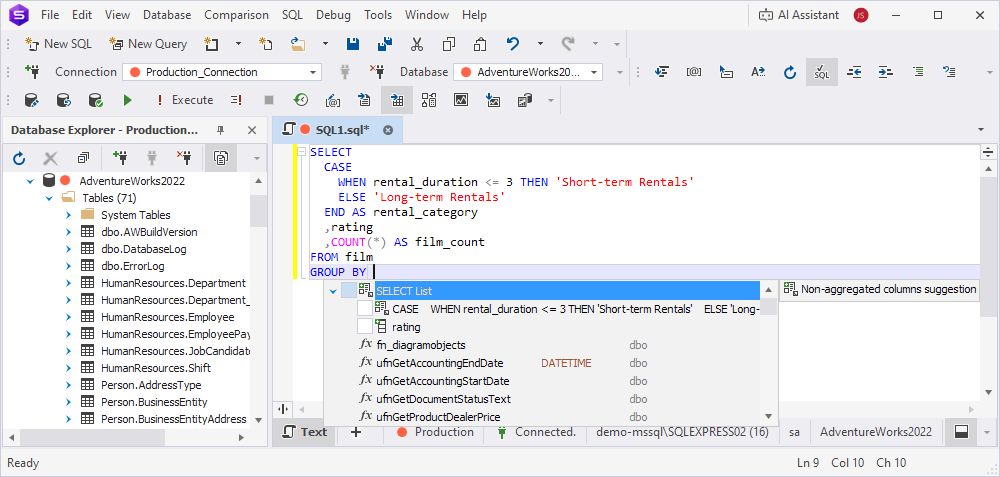

Non-aggregated columns suggestion

If you start typing a column name when the suggestion box is open, the Studio filters the columns in the SELECT list by the entered characters.
