Navigate a database diagram

When you work with complex diagrams, you can use Document Outline and Diagram Overview to navigate a diagram. You can also use the zoom options to adjust the diagram scale for better visibility and precision.

Navigate a diagram using Document Outline

Document Outline displays a structured, hierarchical view of the diagram you’re working on, grouped by containers, database object types, notes, and images. The Notes node includes stamps and notes, and the Tables node includes tables and their associated relationships.

You can open Document Outline in one of these ways:

  • On the menu bar, select View > Document Outline.
  • Right-click an empty area of the diagram and select Synchronize Document Outline.

To navigate to an element in the diagram, double‑click the element in Document Outline. The element is selected in the diagram.

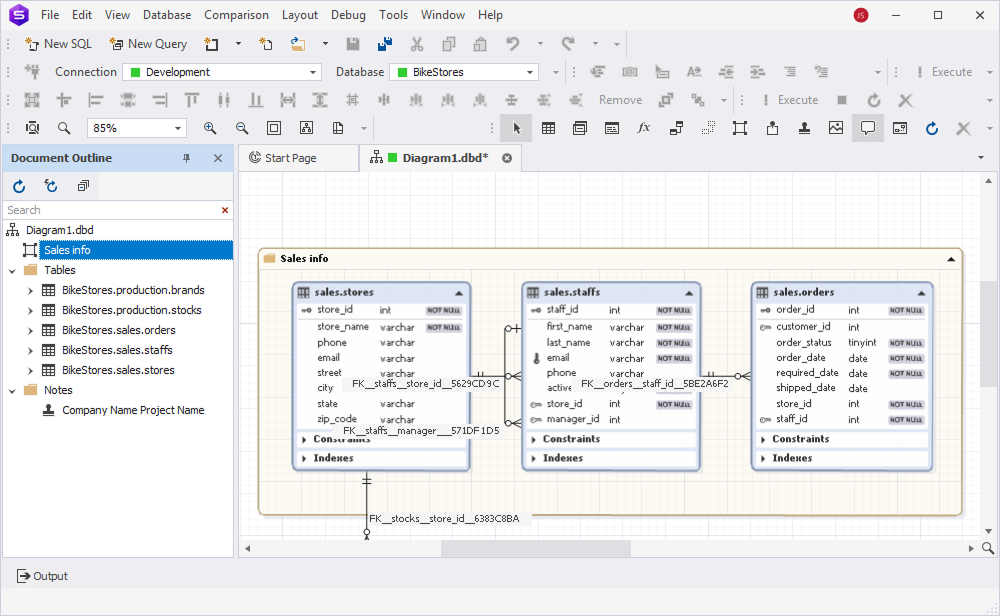

Document Outline in Database Diagram

Document Outline toolbar

The table describes options available on the Document Outline toolbar.

Icon Name Description
Refresh Refresh Reloads Document Outline to reflect any changes made to the diagram.
Toggle automatic refresh Toggle automatic refresh Turns automatic updating of the outline on or off when you modify the diagram.
  • When the option is on, Document Outline updates automatically as you modify the diagram.
  • When the option is off, you need to refresh the outline manually to reflect any changes.
Collapse all Collapse all Collapses all the elements displayed in Document Outline.

Document Outline shortcut menu

Right-click a selected element or empty area in Document Outline and select one of the following options:

  • Collapse – Hides elements for the selected item.
  • Full Expand – Expands all nested elements and displays all levels of content.
  • Full Collapse – Collapses all nested elements and hides all inner content.

Document Outline shortcut menu in Database Diagram

Search for objects

To search for objects in Document Outline, in the search box, enter the search string. The objects matching the search criteria are highlighted in yellow.

To clear the search, in the search box, click Clear Filter.

Navigate a diagram using Diagram Overview

Diagram Overview displays a miniature view of the entire database diagram. You can drag the view area to navigate the diagram.

You can open Diagram Overview in one of these ways:

  • On the Diagram toolbar, click Diagram Overview.

  • Press Ctrl+W, V.

  • On the menu bar, select View > Other Windows > Diagram Overview.

Tip

You can also use scroll bars or the middle mouse button to navigate the diagram.

Diagram overview window in dbForge Studio for SQL Server

Zoom in and out of a diagram

You can use the Diagram toolbar, shortcut menu, or mouse to zoom.

Use the Diagram toolbar

You can use the Diagram toolbar to change the viewing scale to see details more clearly or fit more content on the screen.

Zoom viewing options on the Diagram toolbar

Icon Name Description
Actual Zoom Actual Zoom Sets the zoom level to 100% to display objects at their actual size without scaling them.
Zoom Zoom Changes the diagram scale by setting a specific viewing percentage or fitting the entire diagram on the screen.
Available options are: 10%, 25%, 33%, 50%, 66%, 75%, 100%, 125%, 150%, 200%, 300%, 400%, and Fit.
The Fit option automatically adjusts the zoom level to display the entire diagram.
Zoom In Zoom In Increases the view scale to display objects in greater detail.
Zoom Out Zoom Out Decreases the view scale to display a larger portion of the diagram.

Use the diagram shortcut menu

To change the zoom level, right-click the diagram and select Zoom, then select one of the available options.

Use shortcut menu options to zoom the diagram in or out

Use the mouse

To scroll a diagram vertically, rotate the mouse wheel.

To scroll a diagram horizontally, hold down Shift and rotate the mouse wheel.

To zoom a diagram in or out, hold down Ctrl and rotate the mouse wheel.
