How to find text on a database diagram

dbForge Studio allows searching shapes by text. Database object shapes can be searched by their names and names of their members (columns, constraints, stored routine parameters). Search is also performed in stamp company name and project name fields, in notes, relation comments, container names.

To search for a database object, perform the following steps:

  1. On the Edit menu, select Find and Replace, and then click Find in Files, or press CTRL+SHIFT+F.
  2. Enter the text you search into the Find what field, and click Find All.
  3. Double-click lines in the Find Results window to navigate to the found shapes.

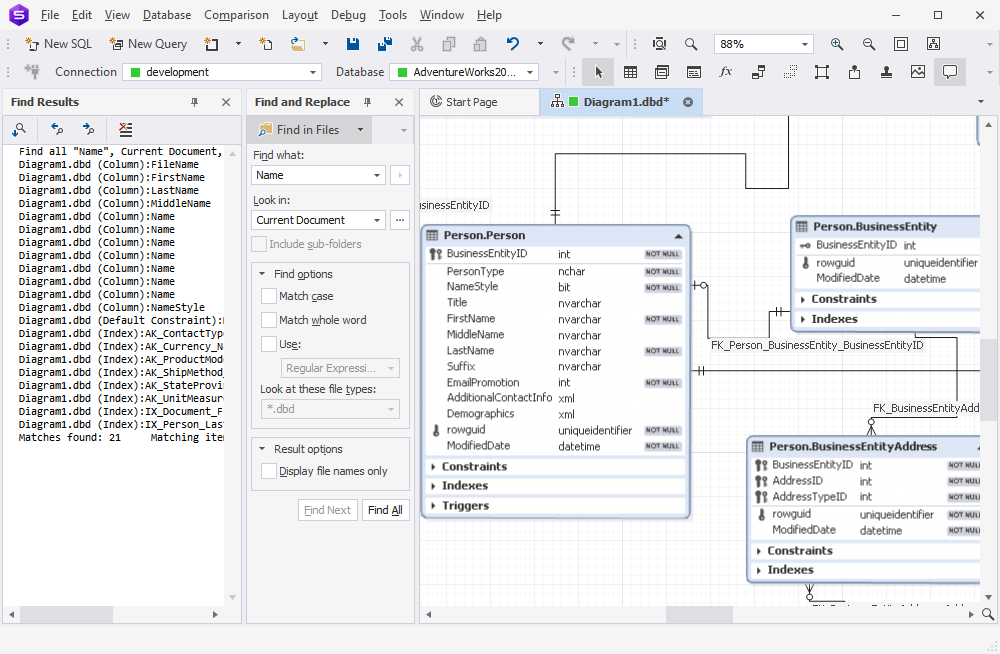

Search Text on the Database Diagram
