Navigate queries

You can navigate between queries, subqueries, and clauses using the Document Outline panel. It displays nodes for all query clauses, selected columns, tables, and views from the FROM clause and diagram, and all subqueries at any nesting level.

Open the Document Outline panel

To open the Document Outline panel, on the menu bar, select View > Document Outline.

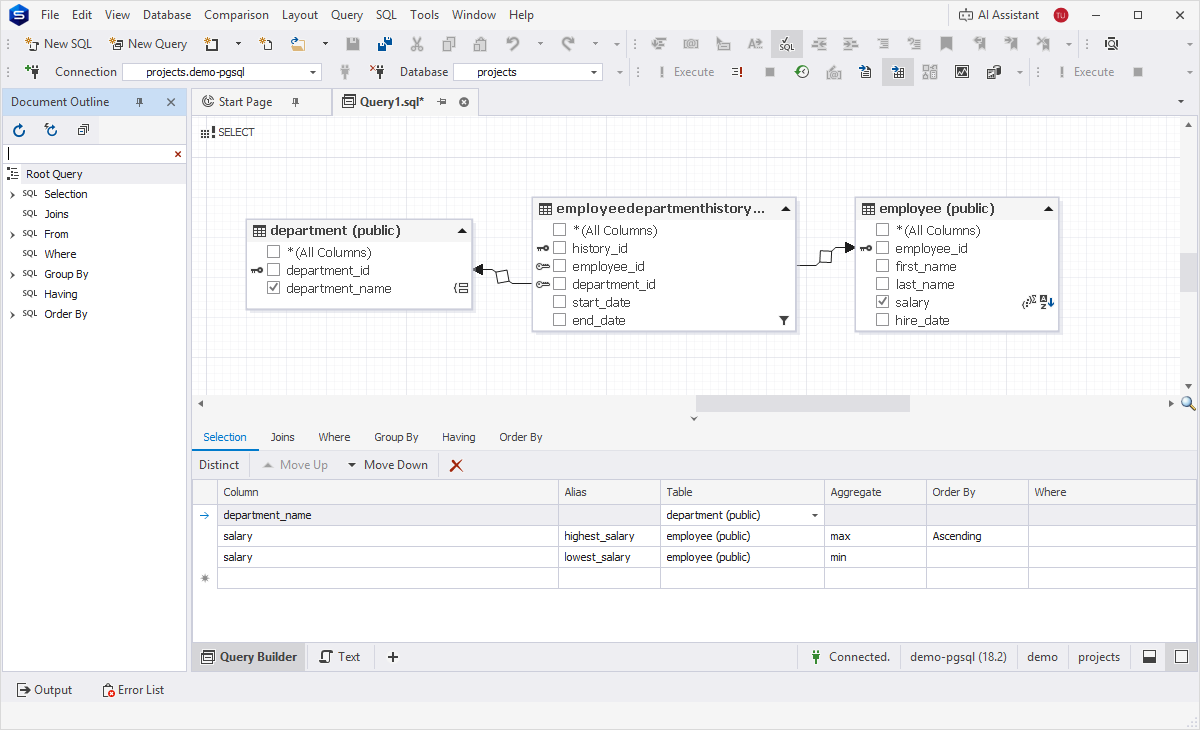

Document Outline for Query Builder

Manage queries and subqueries from Document Outline

In the Document Outline panel, you can activate a tab, open a subquery for editing, or find a specific query or subquery.

  • To switch to a query or subquery in Tabbed Editor, double-click the corresponding item in the Document Outline panel.

  • To open a subquery node for editing, double-click it.

  • To select a specific column or table, double-click it.

  • To find a query, subquery, or related component, enter a keyword in the search box. The search is case-insensitive. Matching text is highlighted in yellow.

  • To clear the search results, click Clear filtering in the search box.

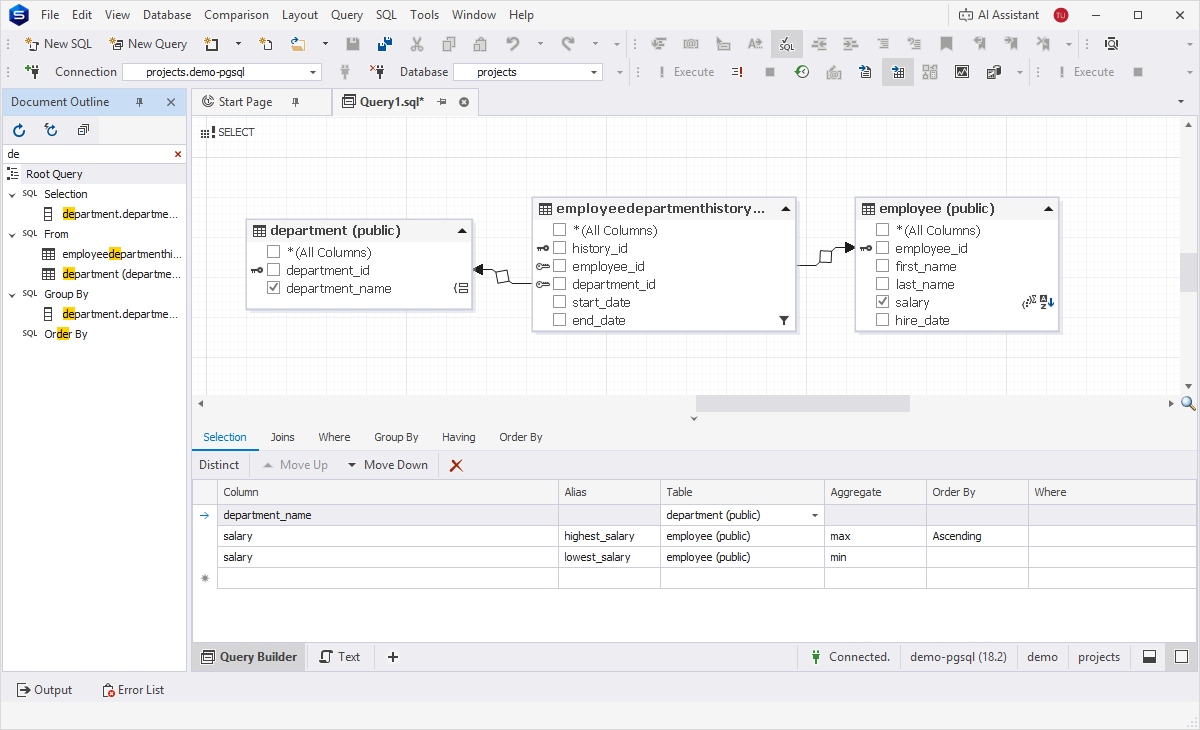

Search in Document Outline

Use the keyboard shortcuts

The table describes the available shortcuts.

Shortcut name Description
Ctrl+A Selects all.
Ctrl+Left Arrow (←) Moves the caret to the beginning of the word.
Ctrl+Right Arrow (→) Moves the caret to the end of the word.
Ctrl+Shift+Left Arrow (←) Selects text from the current caret position to the beginning of the current word and moves the caret to the beginning of the word.
Ctrl+Shift+Right Arrow (→) Selects text from the current caret position to the end of the current word and moves the caret to the end of the word.
Ctrl+Backspace Deletes the word to the left of the caret.

Document Outline toolbar

The table describes the available options.

Icon Name Description
Refresh Refresh Refreshes the list of queries, subqueries, and their components.
Toggle automatic refresh Toggle automatic refresh Turns automatic data updates on or off.
Collapse all Collapse all Collapses all expanded nodes in the hierarchical view.

Shortcut menu commands

In Document Outline, right-click an object, then select the required shortcut menu option.

The table describes the available commands.

Name Description
Collapse Collapses the selected expanded node in a hierarchical view.
Expand Expands the selected collapsed node to show its contents.
Full Expand Expands all collapsed nodes to show their contents.
Full Collapse Collapses all expanded nodes in the hierarchical view.
