Configuring ODBC Driver for Smartsheet

Windows DSN Configuration

After installing the driver, create a DSN for Smartsheet in the ODBC Data Source Administrator.

1. Open the ODBC Data Source Administrator.
   • Type ODBC Data Sources in the Windows search box and choose the application that matches the bitness of the third-party application (32-bit or 64-bit). You can also open ODBC Data Sources from Control Panel > Administrative Tools. Note that before Windows 8, the icon was named Data Sources (ODBC).
   • Alternatively, you can run C:\Windows\SysWOW64\odbcad32.exe to create a 32-bit DSN or C:\Windows\System32\odbcad32.exe to create a 64-bit DSN.
2. Select the User DSN or System DSN tab. Most applications work with both types, yet some applications require a specific type of DSN.
3. Click Add. The Create New Data Source dialog will appear.
4. Select Devart ODBC Driver for Smartsheet and click Finish. The driver setup dialog will open.

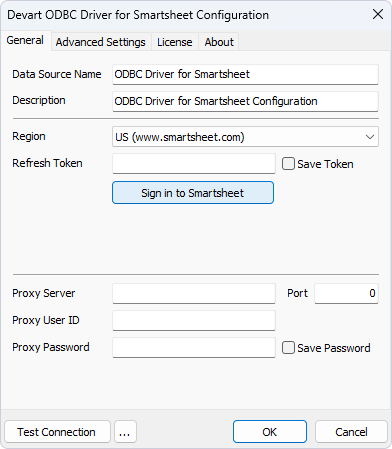

5. Specify the Data Source Name property field and click Sign in to Smartsheet.



6. Log in to Smartsheet and obtain a refresh token.
7. You may test the connectivity by clicking Test Connection.

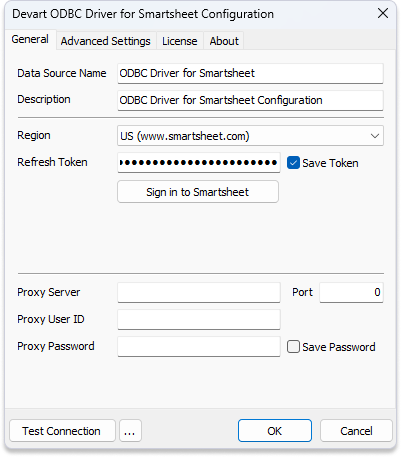

8. The Save Token check box will be selected automatically to save the refresh token.



9. Click OK to save the DSN.
