Connecting to ServiceNow via ODBC Driver

Windows DSN Configuration

After installing the driver, create a DSN for ServiceNow in the ODBC Data Source Administrator.

1. Open the ODBC Data Source Administrator.
   • Type ODBC Data Sources in the Windows search box and choose the application that matches the bitness of the third-party application (32-bit or 64-bit). You can also open ODBC Data Sources from Control Panel > Administrative Tools. Note that before Windows 8, the icon was named Data Sources (ODBC).
   • Alternatively, you can run C:\Windows\SysWOW64\odbcad32.exe to create a 32-bit DSN or C:\Windows\System32\odbcad32.exe to create a 64-bit DSN.
2. Select the User DSN or System DSN tab. Most applications work with both types, yet some applications require a specific type of DSN.
3. Click Add. The Create New Data Source dialog will appear.
4. Select Devart ODBC Driver for ServiceNow and click Finish. The driver setup dialog will open.

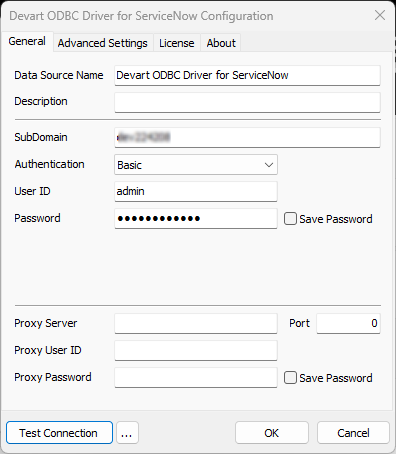

5. Enter the connection information in the appropriate fields for Basic type of authentication.



6. If you want to authenticate via OAuth, click the Sign In.
7. Log Into your ServiceNow account and proceed. The details will autopopulate the corresponding fields.

See Also

Connection Options
