Zoho CRM

ExpandedToggleIcon        Connection Dialog

For connecting to Zoho CRM, Devart Excel Add-ins support Zoho CRM API v8 (Preferred) and API v2 (Deprecated).



To connect to Zoho CRM, you need to specify the following parameters:

Authentication Type - The authentication method to use.
API Version - The version of Zoho CRM API to use.
Domain - The Zoho CRM domain to connect to. The possible values are:
crm.zoho.com
crm.zoho.eu
crm.zoho.in
crm.zoho.com.cn
crm.zoho.com.au
Refresh Token - Zoho CRM OAuth 2.0 refresh token used to obtain new access tokens when the current access token expires. This parameter is filled automatically when you perform Web Login.
Client ID - A unique identifier provided to every Zoho CRM client application when the application is registered with Zoho. This parameter is filled automatically when you perform Web Login.
Client Secret - A secret code assigned to a Zoho CRM client application and used together with the Client ID for OAuth authentication. This parameter is filled automatically when you perform Web Login.


OAuth Interactive authentication


OAuth Interactive authentication uses the authorization code flow with user sign-in in a browser window. This method enables you to obtain a refresh token without requiring a security token or manually entering the client ID and client secret.

To connect with the OAuth Interactive authentication:

1. In Authentication Type, select OAuthInteractive.

2. In API Version, select the API version to use—Preferred (v8) or Deprecated (v2).

3. In Domain, select the Zoho CRM domain for your account.

4. Click Sign In.

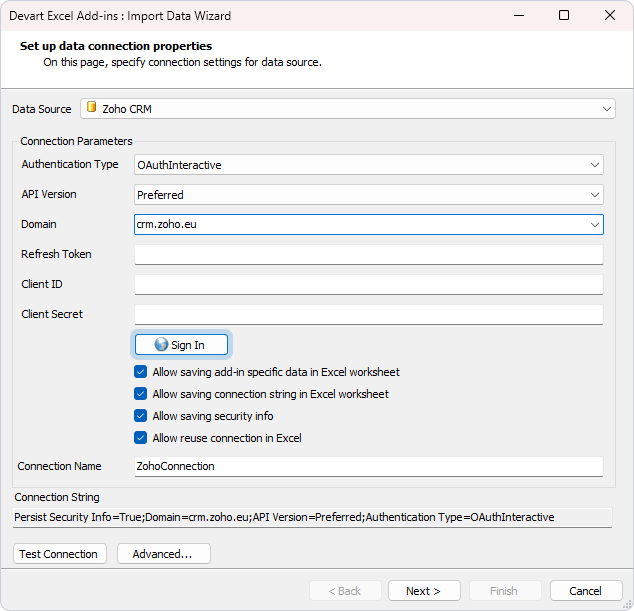

Import Data Wizard: Sign in

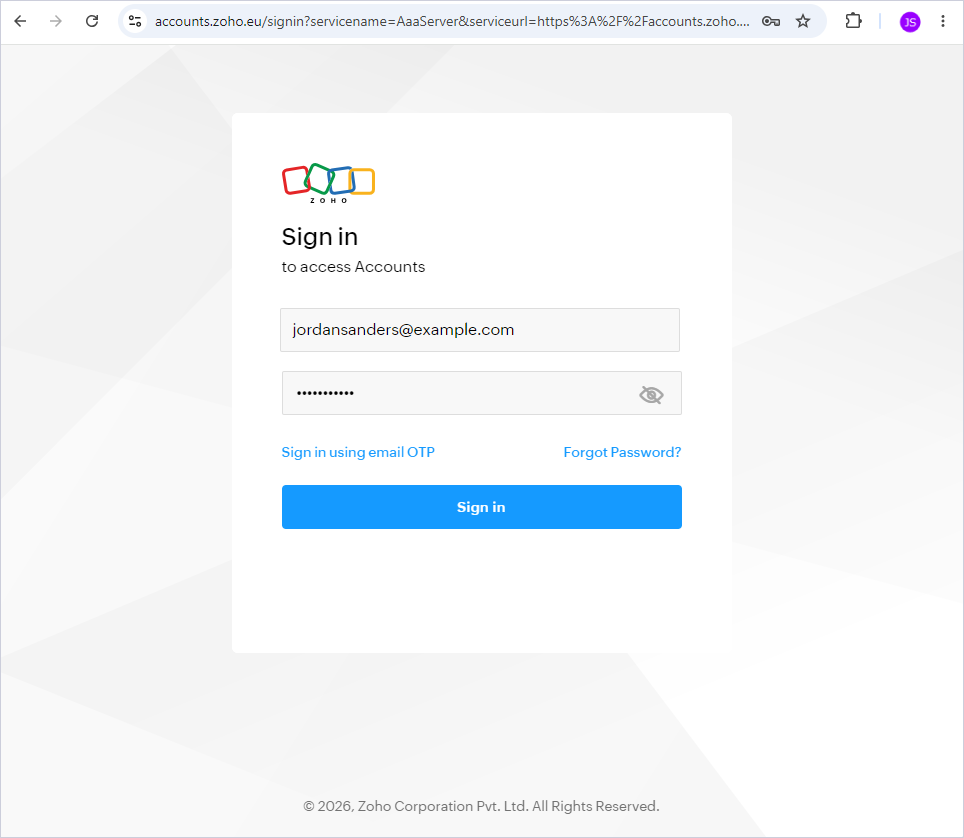

5. In the browser window, sign in to Zoho CRM with your username and password.

Sign in to your Zoho account.png

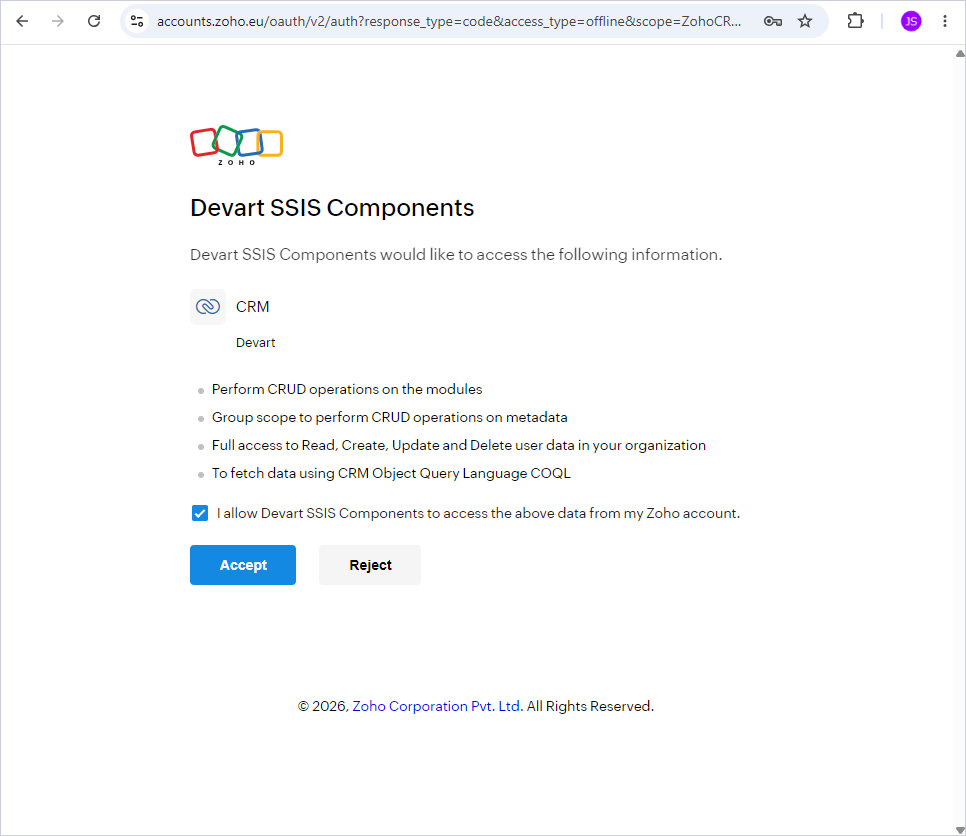

6. In the authorization window, grant Devart Excel Add-ins the requested permissions.

Grant permissions

7. Optional: To specify how connection data is saved and reused in Excel, configure the connection saving options. For more information, see Connecting and Importing Data.

8. Optional: To configure advanced connection options, click Advanced.

9. Optional: To verify that the connection details are valid, click Test Connection.

10. Click Next.

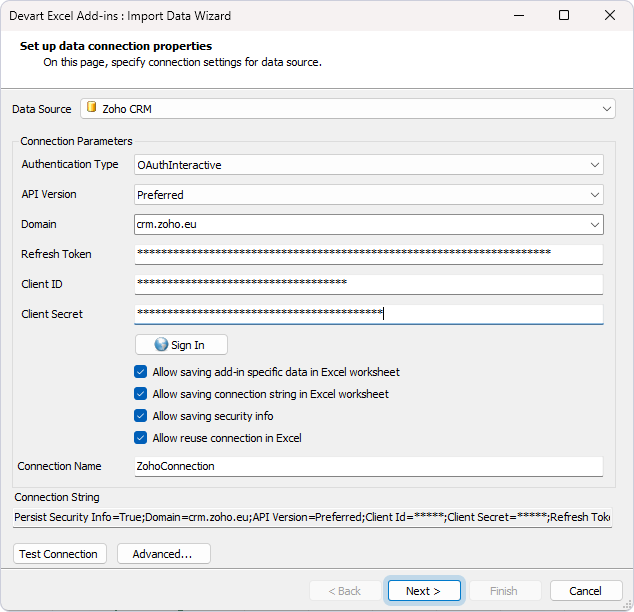

Import Data Wizard: Client credentials filled in



ExpandedToggleIcon        Advanced Connection Options

The following table describes the options that you can include in the Connection String using the Advanced Connection Editor dialog box:



Option

Description

API Version

The version of Zoho CRM API to use: Preferred (API v8) or Deprecated (API v2).

Client Id

A unique identifier provided to every Zoho CRM client application when the application is registered with Zoho. This parameter is filled automatically when you perform Web Login.

Client Secret

A secret code assigned to a Zoho CRM client application and used together with the Client ID for OAuth authentication. This parameter is filled automatically when you perform Web Login.

Connection Lifetime

When a connection is returned to the pool, its creation time is compared with the current time, and the connection is destroyed if that time span (in seconds) exceeds the value specified by Connection Lifetime. The default value is 0 (connection always returns to pool).

Connection Timeout

The length of time (in seconds) to wait for a connection to the server before terminating the attempt and generating an error. The default value is 15.

Default Command Timeout

The time in seconds to wait while trying to execute a command before terminating the attempt and generating an error.

Domain

Zoho CRM domain base URL. The possible values are:

crm.zoho.com
crm.zoho.eu
crm.zoho.in
crm.zoho.com.cn
crm.zoho.com.au

Failover Retries

The number of retry attempts to automatically re-run a command before displaying an error message in case when the command failed because of an error that may be temporary.

Local SQL Engine

Determines whether to use local SQL engine for SELECT queries, that are too complex to translate them directly to Zoho CRM API calls or to show an error message.

Max Pool Size

The maximum number of connections allowed in the pool. Setting the Max Pool Size value in the connection string can affect performance. The default value is 100.

Min Pool Size

The minimum number of connections allowed in the pool. The default value is 0.

Persist Security Info

Indicates if security-sensitive information, such as the password, is not returned as part of the connection if the connection is open or has ever been in an open state.

Pooling

If true, by default, the connection is drawn from the appropriate pool or is created and added to the appropriate pool.

Proxy Host

The host name or IP address of proxy server.

Proxy Password

The password for the proxy server account.

Proxy Port

The port number of the proxy server. The default value is 3128.

Proxy User

The proxy server account name.

Readonly

Indicates whether the connection is read-only (allows only SELECT statements).

Refresh Token

Zoho CRM OAuth 2.0 refresh token used to obtain new access tokens when the current access token expires. This parameter is filled automatically when you perform Web Login.

Token Server

The path to a file to store the refresh token between sessions. This parameter is specified automatically when performing web login, and in most cases there is no need to modify it. If you want, you may specify a custom path to use instead of the default one.

Trigger Workflow

Determines whether to trigger the workflow rule when inserting or updating data.

Upgrade Cache

Determines whether to upgrade the local cache database or to throw an exception in case when Devart Excel Add-ins version that uses a newer cache structure or newer version of Zoho CRM API discovers an old incompatible cache for the connection that is opening.

Use Display Name For Custom Tables

Determines whether display names are used to access custom Zoho CRM modules instead of the module names.

UTC Dates

If set to True, dates will be converted to UTC format during import, and the date values entered in Excel are considered UTC dates when saving them to the data source.
