This tutorial requires SQL Server 2012 and Microsoft SQL Server Integration Services Designer. A similar Integration Services package can be created with SQL Server 2008 and BIDS 2008; however, there may be some differences, mostly in using the Toolbox. In BIDS 2008, dotConnect for PostgreSQL SSIS Data Flow components are not added to the Toolbox by default. You need to add them yourself as described in SSIS Data Flow Components Installation in BIDS 2008. The names of the Toolbox tabs are also different in BIDS 2008 and Microsoft SQL Server Integration Services Designer.
For the purpose of this tutorial, we create a Devart PostgreSql Source and an OLE DB Destination.
In the Control Flow tab, from the Control Flow Items tab in the Toolbox, drag Data Flow Task to the design area. The Data Flow Task is created.
Switch to the Data Flow tab. From the Other Destinations tab of the Toolbox drag the OLE DB Destination to the design area.
From the Common tab of the Toolbox drag Devart PostgreSql Source to the design area. (By default dotConnect for PostgreSQL SSIS Data Flow components are added to the Common tab when installing dotConnect for PostgreSQL.)
Connect the two data flow objects with a Data Flow path.

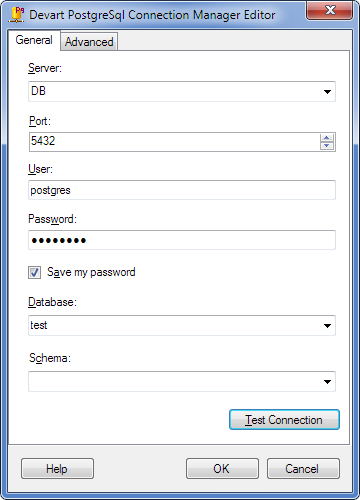

For this example we need two connections - one for the OLE DB Destination, the other one for the Devart PostgreSql Source. To create a connection to PostgreSQL, do the following:
The connection is now created.
To create a connection for the OLE DB Source we do the following:
Click OK.
The connection for the OLE DB source is now created.
Note: |
---|

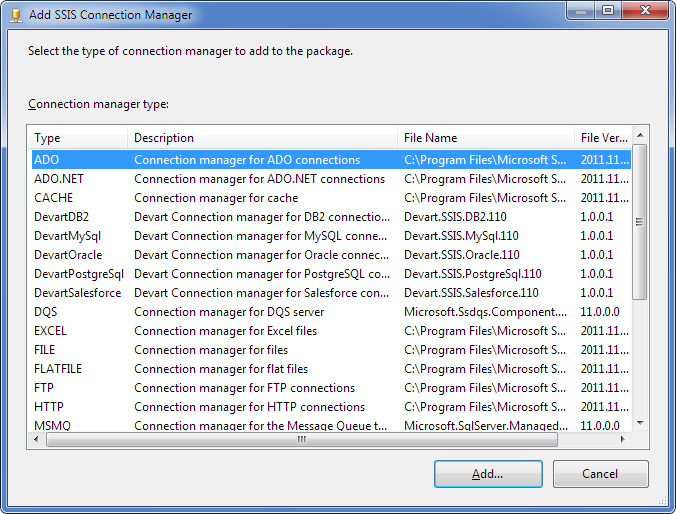

If you create an Integration Services package in BIDS 2008, you will need to do additional actions to open the Configure OLE DB Connection Manager dialog box instead of simply selecting New OLE DB Connection from the shortcut menu. To be more specific, you will need to right-click in the Connection Managers pane and then click New Connection instead of New OLE DB Connection, as the latter is not present in BIDS 2008. After this, the Add SSIS Connection Manager dialog box is displayed. In the Connection manager type list select OLEDB and click Add. Then the Configure OLE DB Connection Manager dialog box is displayed, and after this you need to perform the steps above. |
After the two required connections are created, we can proceed to customizing the data flow items.
For the sake of this example, we will also create a variable, for this:
The Variables tool window is displayed.
In this example we call the variable 'myvar' and set the following properties:
other properties are left set to their default values.
Now we proceed to customizing the Devart PostgreSql Source.
Double-click the Devart PostgreSql Source data flow object.
The Devart PostgreSql Source Editor dialog box is displayed.

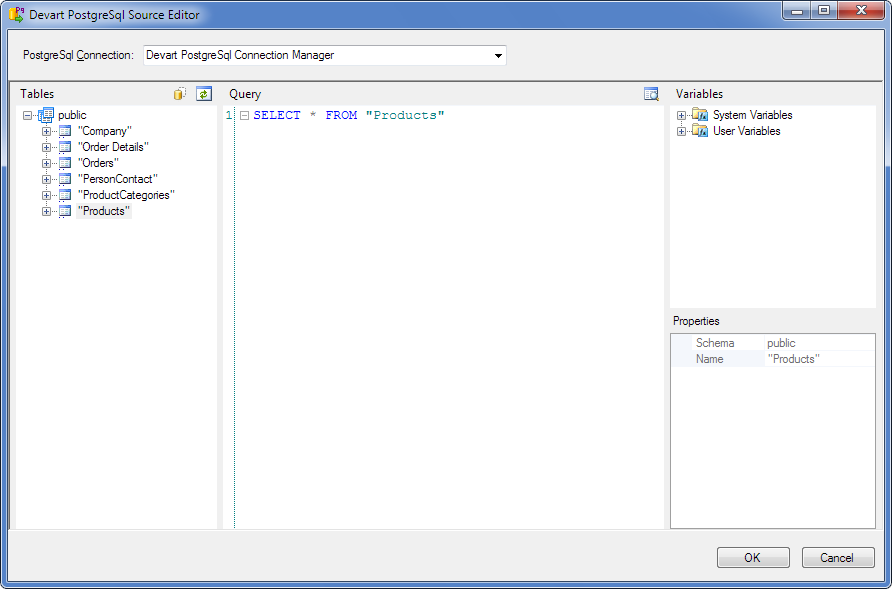

Drag the required table (in our example we use the Products table from the dotConnect for PostgreSQL sample crm_demo database) from the PostgreSQL Objects area to the Query area:

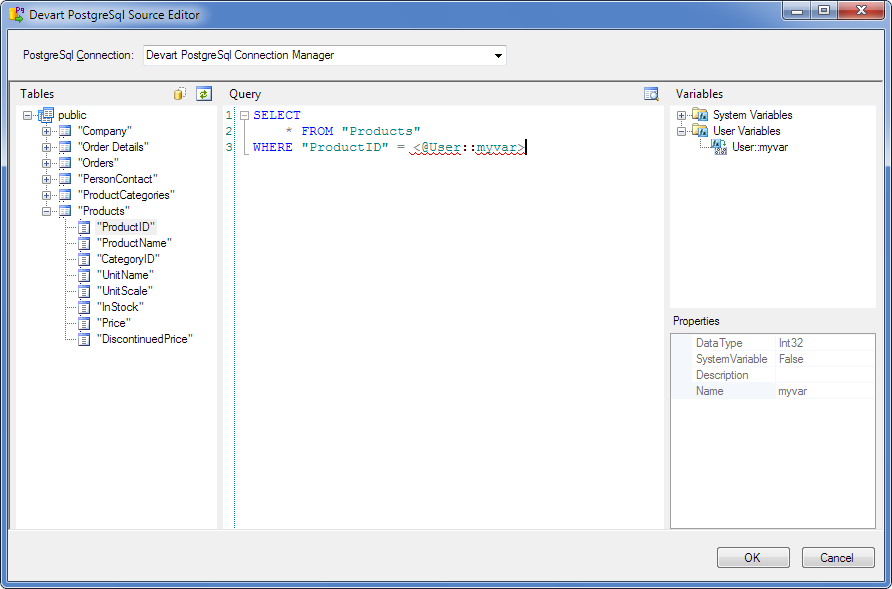

Then we add a WHERE clause and drag the variable we have previously created from the User node of the Variables area to the Query area, thus we get the following query:

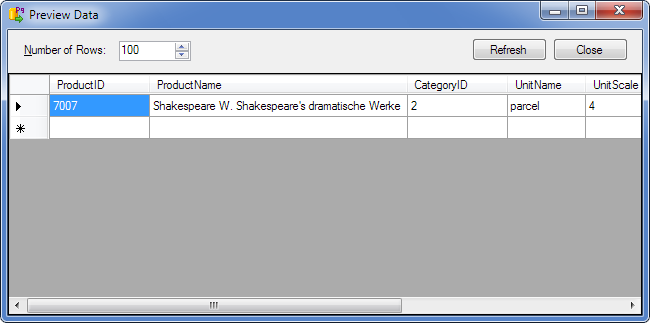

Click the Preview Data button to view the result of the query execution. The Preview Data window is displayed:
Click Close to return to the Devart PostgreSql Source Editor dialog box.
In the editor dialog box click OK.
If all options are set correctly, the red marker on the data flow object disappears.
Drag the OLE DB Destination data flow object to the design area.
Connect the two data flow objects with a Data Flow path.
Proceed to customizing the OLE DB Destination.

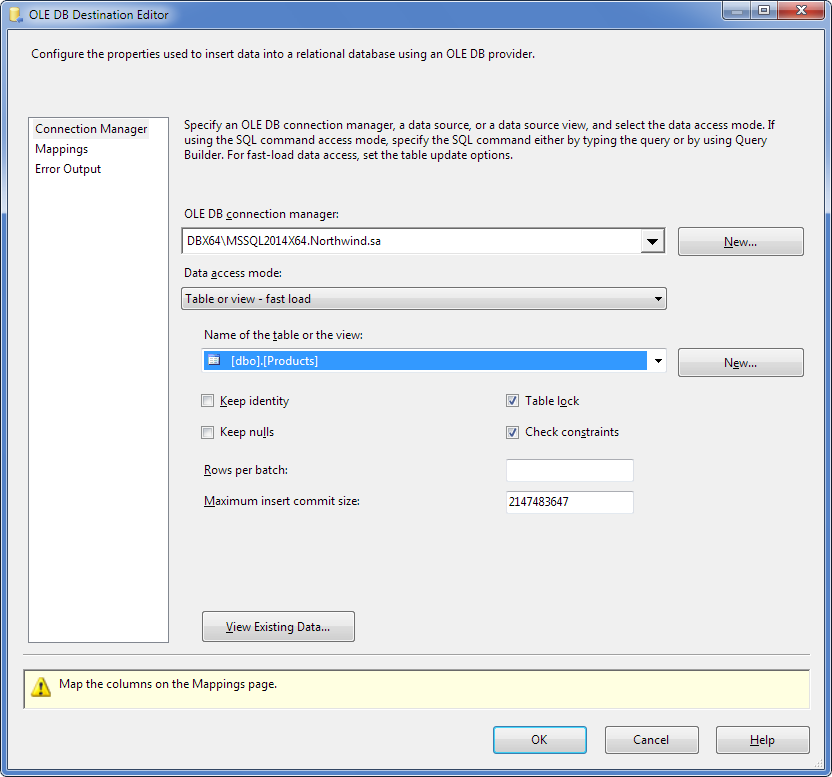

Right-click the OLE DB Destination data flow object. The Connection Manager tab of the OLE DB Destination Editor dialog box is displayed.
Specify the following settings in this tab:

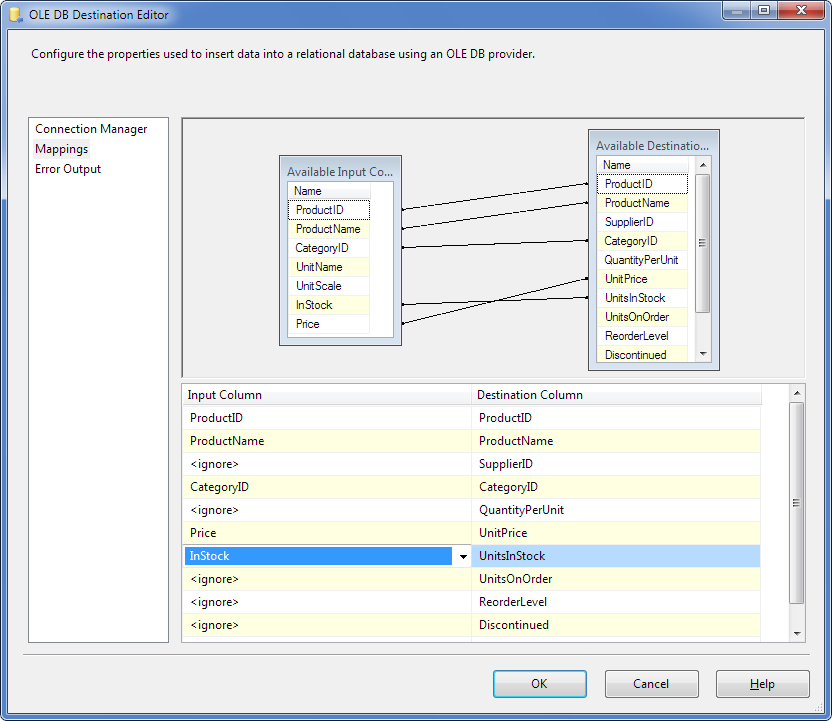

Switch to the Mappings tab.
This tab displays mapping defined automatically by SSIS on the basis of the column name correspondence. If necessary, specify mapping between the source and destination columns either using the Input Columns drop-down lists, or just by drawing lines between the corresponding columns:

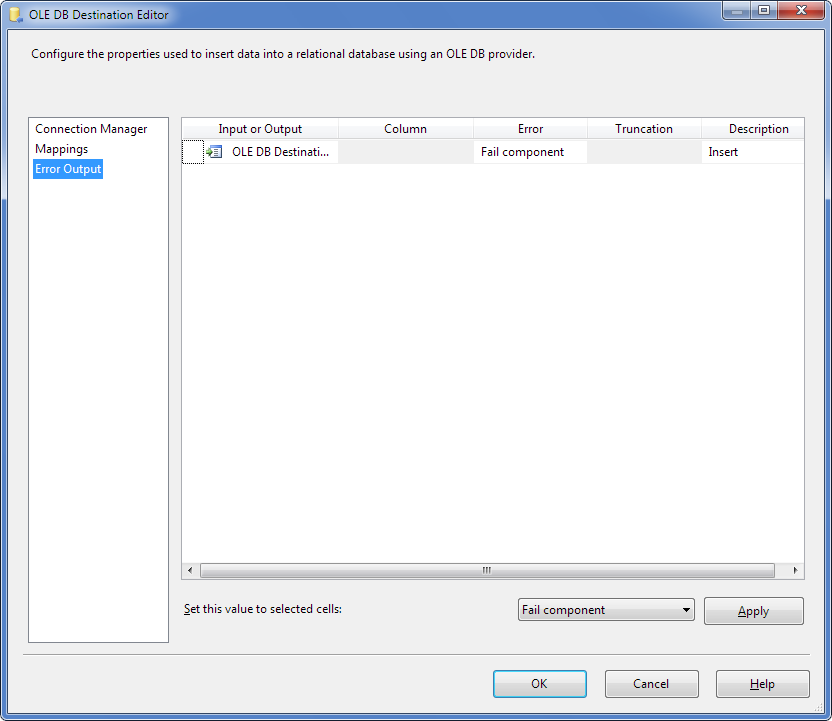

Switch to the Error Output tab.
This tab allows you to specify in what way component failure should be treated; the following options are available: Fail component, Redirect row, Ignore failure.
After all options are set, click OK.
Make sure that the red marker is absent on the OLE DB Destination data flow object.
Right-click the design area and select Execute Task in the context menu. The green color of the data flow objects indicates that the data flow process is completed successfully:
